Product parameters:
Model: SX2-10-12
Environmental temperature: 0-50 ° C
Temperature control range: room temperature -1200 ° C
Reachable temperature: ≤ 1000 ° C
Temperature control accuracy: ± 1 ℃
Temperature fluctuation: ± 1 ℃ (test point 600 ° C)
Temperature equilibrium: ± 3 ° (test point 600 ° C)
Heating rate: below 700 ° C, about 15 degrees per minute
Furnace size (mm): 400x250x160
External dimensions (mm): 720x520x500
Weight gross weight: ≈ 90kg
Volume: ≈ 16L
Input power: 10kw
Power supply voltage: 380V

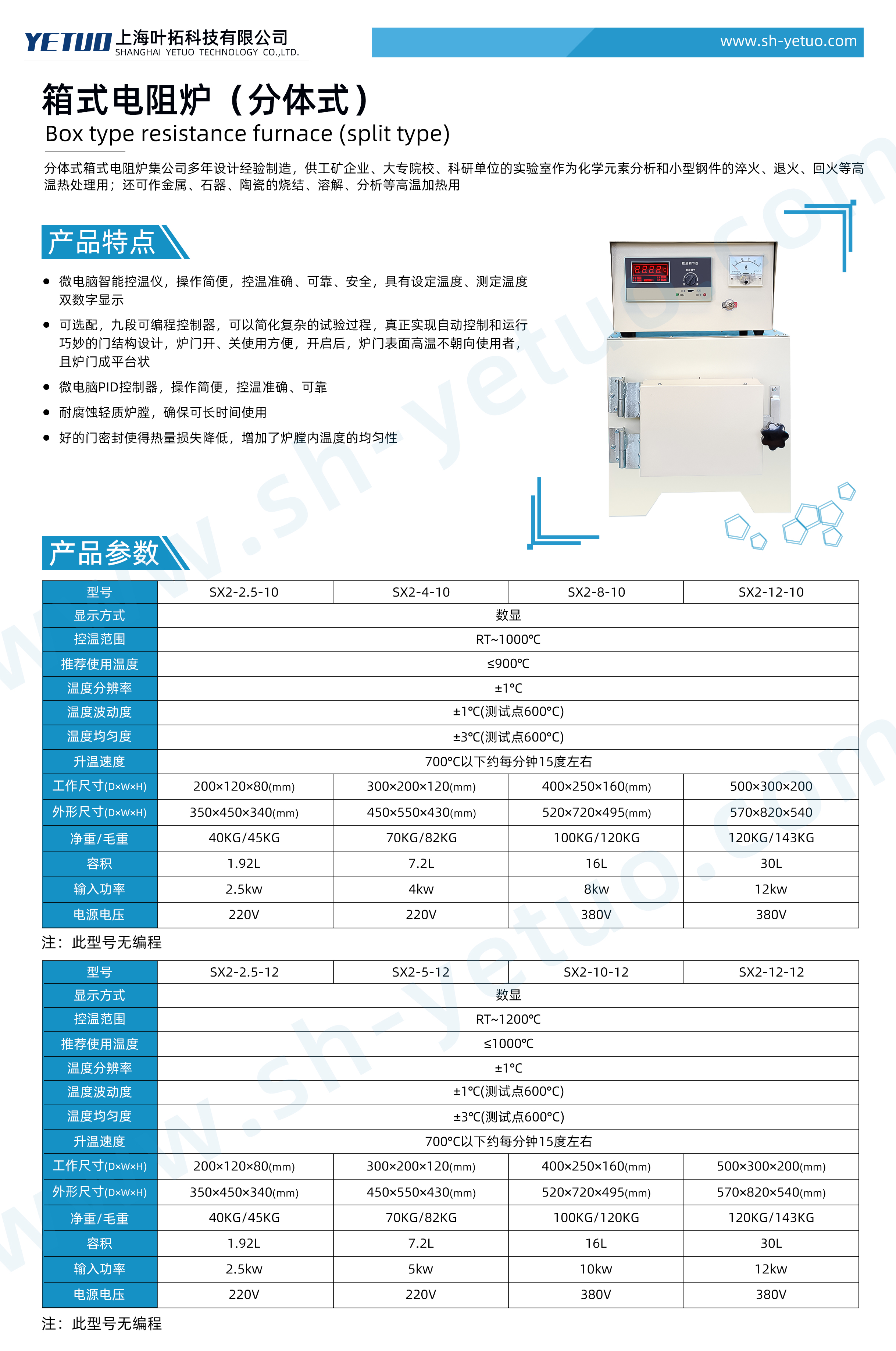

Ye Tuo SX2-10-12 Split Box Resistance Furnace
Model: SX2-10-12
Product Overview:
The split type box type resistance furnace is designed and manufactured by our company with many years of experience, specifically for use in laboratories of industrial and mining enterprises, colleges and universities, and scientific research units for chemical element analysis and high-temperature heat treatment of small steel parts such as quenching, annealing, and tempering; It can also be used for high-temperature heating such as sintering, dissolution, and analysis of metals, stone tools, and ceramics;
Characteristics of Ye Tuo SX2-8-12 Split Box Resistance Furnace Products
The microcomputer intelligent temperature controller is easy to operate, accurate and reliable in temperature control, and has a dual digital display for setting and measuring temperatures.
Optional, nine stage programmable controller can simplify the complex testing process, truly achieve automatic control and clever door structure design for operation. The furnace door is easy to open and close, and after opening, the high temperature on the surface of the furnace door does not face the user, and the furnace door is in a platform shape.
The microcomputer PID controller is easy to operate, with accurate and reliable temperature control.
Corrosion resistant lightweight furnace, ensuring long-term use.
Good door sealing reduces heat loss and increases the uniformity of temperature inside the furnace.
