Circulating water vacuum pump
Yetuo SHB-3A (anti-corrosion) circulating water vacuum pump

Model: SHB-3A (anti-corrosion)

Capacity: 15L

Working voltage and power: 220V ± 10% 50Hz/180W

Display mode: pressure gauge x2

Number of exhaust heads: 2

Single head suction volume: 10

Flow rate and head: 60 (L/min)/8m

Circulating water function: Yes

Tap material: Copper

Check valve material: PTFE

Pump head material: Polypropylene

Vacuum degree: 0.098Mpa

Water tank material: ABS

Noise: ≤ 45dB

Dimensions (mm): 400x280x420

Product weight (net weight/gross weight): 15/17kg


Quotation:Inquiry now

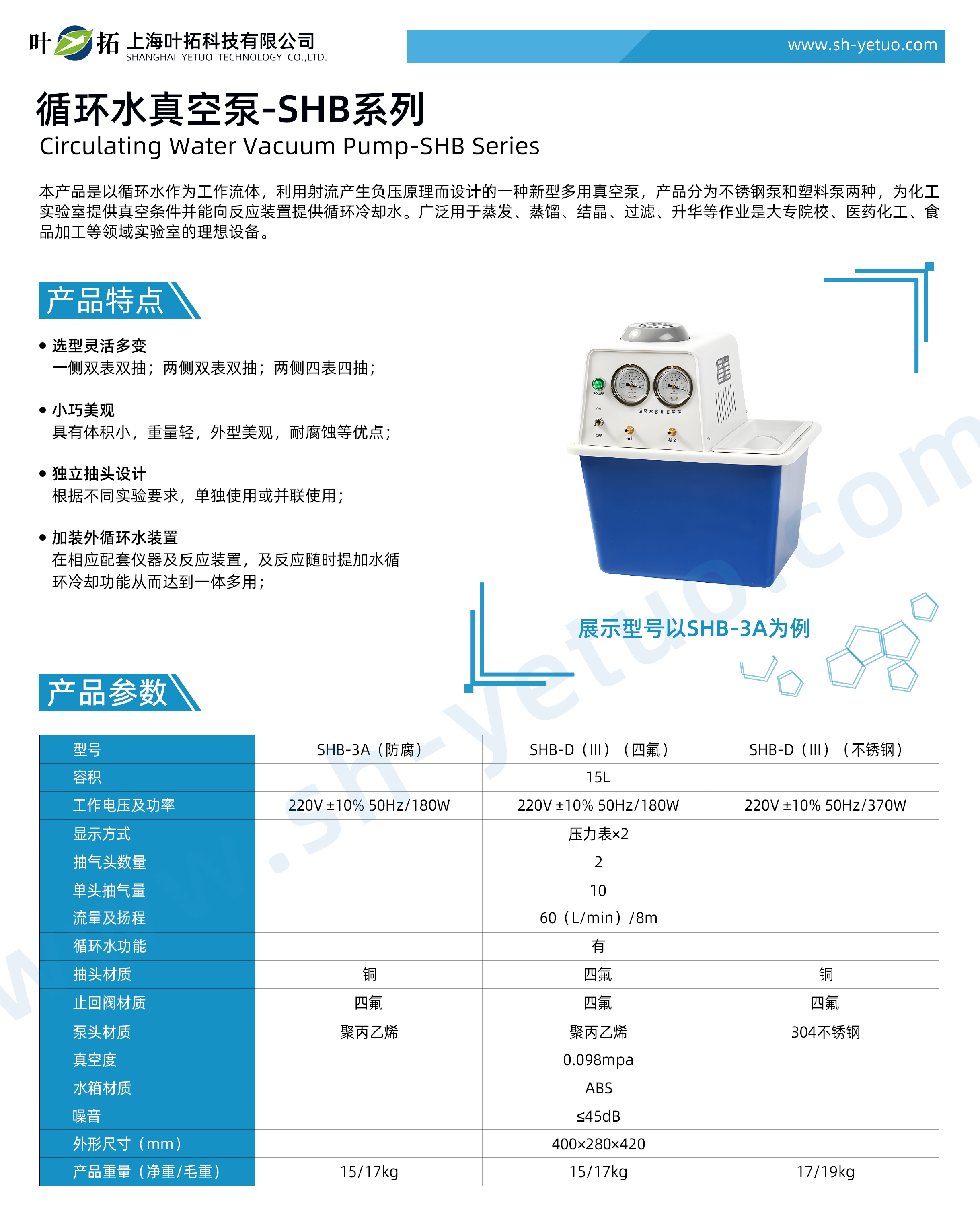

Yetuo SHB-3A circulating water vacuum pump


Product model: SHB-3A



Product Overview:


This product is a new type of multi-purpose vacuum pump designed using circulating water as the working fluid and the principle of negative pressure generated by jet flow. The pump is divided into two types: stainless steel pump and plastic pump, providing vacuum conditions for chemical laboratories and circulating cooling water to reaction devices. Widely used in evaporation, distillation, crystallization, filtration, sublimation and other operations, it is an ideal equipment for laboratories in colleges, pharmaceuticals, chemical engineering, food processing and other fields.


Product Features of Yetuo SHB-3A Circulating Water Vacuum Pump



● Flexible and versatile selection


One side dual meter dual draw; Double tables on both sides, double draw; Four tables on both sides and four draws;


● Compact and beautiful


It has the advantages of small size, light weight, beautiful appearance, corrosion resistance, etc;


● Independent tap design


According to different experimental requirements, use separately or in parallel;


● Install an external circulating water device


Provide water circulation cooling function in corresponding supporting instruments and reaction devices, and provide water circulation cooling function at any time for reaction, thus achieving multi-purpose integration;
