Product Parameters:
Instrument model: YTLG-20FT
Instrument specification: Cap type silicone oil heating
Freeze dried area (m2): 0.2 ㎡
Capture capacity (kg/batch): 4kg/batch
Bottled quantity of penicillin with a diameter of 12 (mm): 1300 units
Diameter 16 (mm): 810 pieces
φ 22 (mm): 430 pieces
Disk solution (L): 3L
Board size: Length (mm): 300, Width (mm): 345
Board spacing (mm): 100mm
Number of layers (blocks): 2+1 block
Temperature range of the board layer (℃): -50 ° C~60 ° C (unloaded)
Minimum temperature of cold trap (℃): -70 ° C (unloaded)
Ultimate vacuum degree (pa): 1pa (no load)
Power (kw): 3.0Kw (220V)
Environmental temperature (℃): ≤ 25 ° C
Dimensions (mm): 800x800x1480 (excluding manual pressure bar)
Supporting vacuum pump: 4L/S
Host weight (kg): 260kg
Configuration: Freeze dryer host, vacuum pump, spare parts

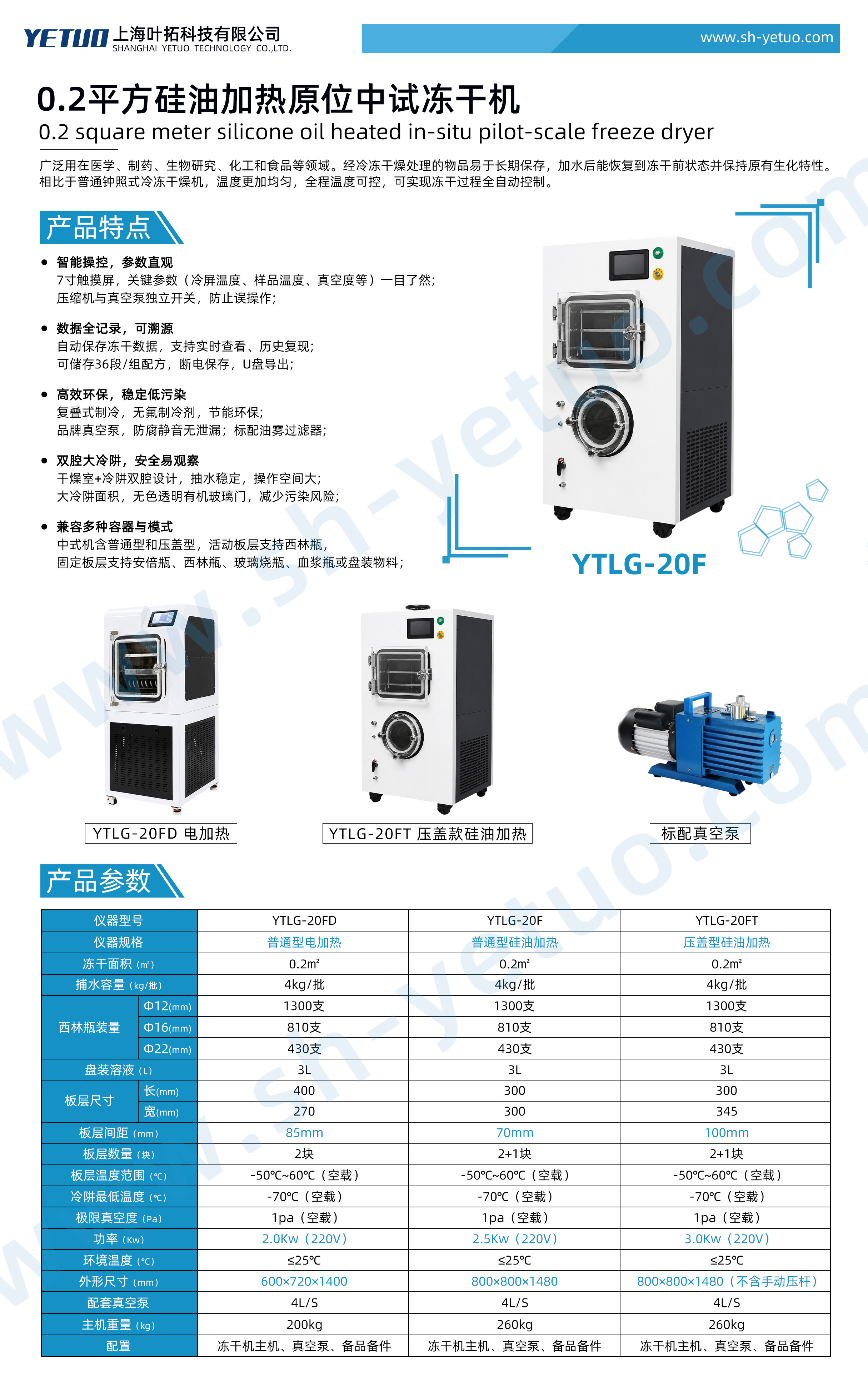

Yetuo YTLG-20FT 0.2 square silicone oil in-situ pilot freeze-drying machine
Model: YTLG-20FT
Product Overview:
Widely used in fields such as medicine, pharmaceuticals, biological research, chemical engineering, and food. Items that have undergone freeze-drying treatment are easy to store for a long time, and can be restored to their pre freeze-drying state and maintain their original biochemical characteristics after adding water. Compared to ordinary clock type freeze dryers, the temperature is more uniform, the temperature is controllable throughout the process, and the freeze-drying process can be fully automated.
Product Features of Yetuo YTLG-20FT 0.2 Square Silicone Oil Heating In Situ Pilot Freeze Drying Machine
Intelligent control, intuitive parameters
7-inch touch screen, key parameters (cold screen temperature, sample temperature, vacuum degree, etc.) are clear at a glance; Independent switch between compressor and vacuum pump to prevent misoperation;
● Full data recording, traceable
Automatically save freeze-drying data, support real-time viewing and historical reproduction; Can store 36 formulas per group, save when powered off, and export from USB drive;
Efficient and environmentally friendly, stable and low pollution
Cascade refrigeration, fluorine free refrigerant, energy-saving and environmentally friendly; Brand vacuum pump, anti-corrosion, silent and leak free; Standard oil mist filter;
Double cavity large cold trap, safe and easy to observe
Double chamber design of drying chamber and cold trap, stable pumping and large operating space; Large cold trap area, colorless and transparent organic glass door, reducing pollution risk;
● Compatible with multiple containers and modes
Chinese style machines include regular and capping types, with movable plate layers supporting penicillin bottles and fixed plate layers supporting Abe bottles, penicillin bottles, glass flasks, plasma bottles, or tray materials;
