Product Parameters:
Model: SX2-10-12N/NP
Display mode: LCD
Temperature control range: RT~1200 ° C
Recommended operating temperature: ≤ 1000 ° C
Temperature resolution: 1 ° C
Temperature fluctuation: ± 1 ° C (test point 600 ° C)
Temperature uniformity: ± 3 ° C (test point 600 ° C)
Heating rate: Approximately 15 degrees per minute below 700 ° C
Working dimensions (DxWxH): 400x250x160 (mm)
Dimensions (DxWxH): 720x520x710 (mm)
Net weight/gross weight: 80KG/100KG
Capacity: 16L
Input power: 10kw
Power supply voltage: 380V
Note: NP is programmable for 9-stage program heating, N is non programmable

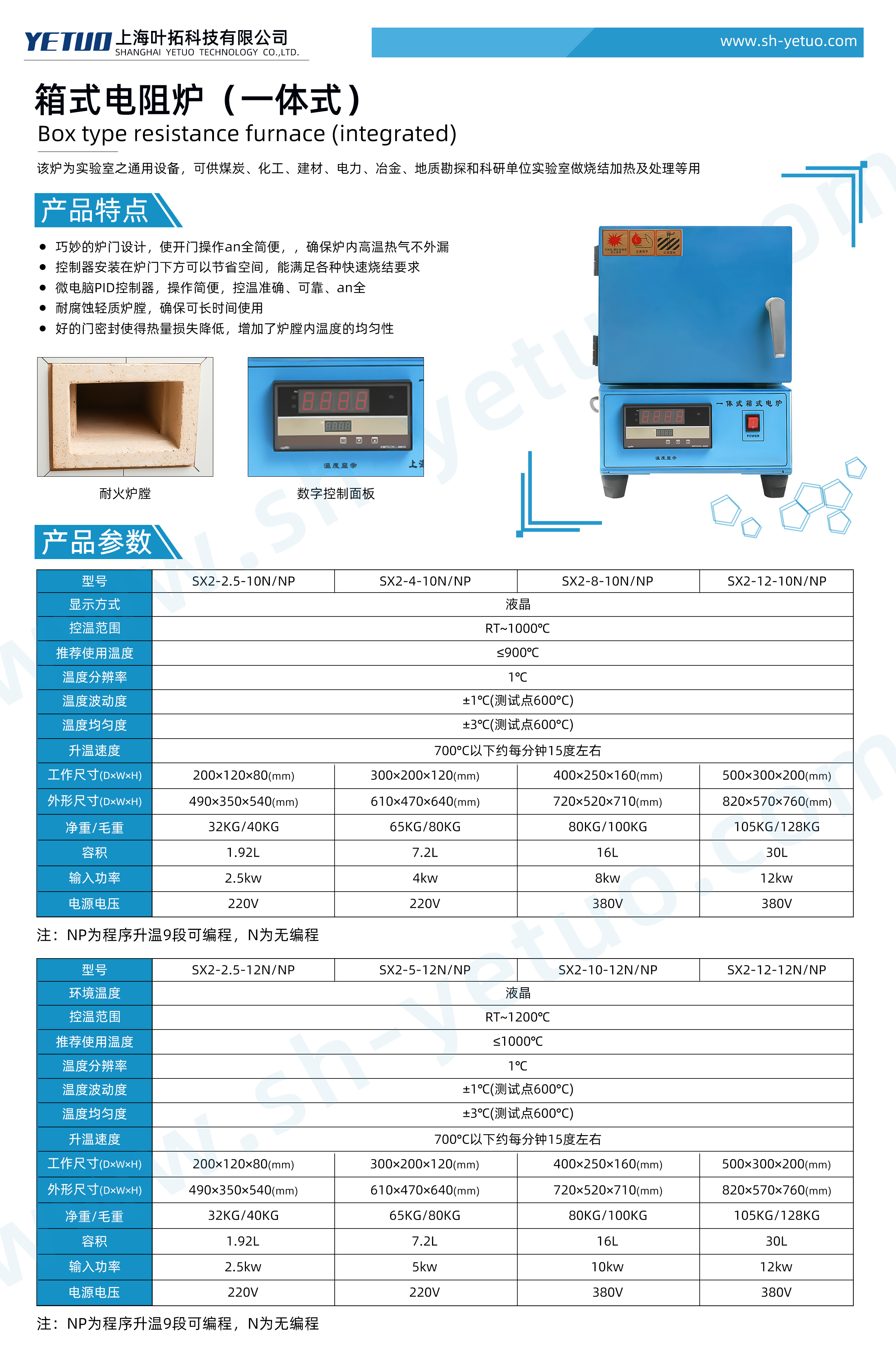

Yetuo SX2-10-12N/NP integrated box type resistance furnace
Model: SX2-10-12N/NP
Product Overview:
This furnace is a universal equipment for laboratories, which can be used for sintering heating and processing in coal, chemical, building materials, power, metallurgy, geological exploration, and scientific research laboratories.
Product Features of Yetuo SX2-10-12N/NP Integrated Box type Resistance Furnace
Clever furnace door design makes door opening operation easy and ensures that high-temperature hot air inside the furnace does not leak out.
Installing the controller under the furnace door can save space and meet various fast sintering requirements.
Microcomputer PID controller, easy to operate, accurate, reliable, and comprehensive temperature control.
Corrosion resistant lightweight furnace ensures long-term use.
A good door seal reduces heat loss and increases the uniformity of temperature inside the furnace.
