Model: SX2-4-10N
Environmental temperature: 0-50 ° C
Temperature control range: room temperature -1000 ° C
Reachable temperature: ≤ 900 ° C
Temperature control accuracy: ± 1 ℃
Temperature fluctuation: ± 1 ℃ (test point 600 ° C)
Temperature equilibrium: ± 3 ° (test point 600 ° C)
Heating rate: below 700 ° C, about 15 degrees per minute
Furnace size (mm): 300x200x120
External dimensions (mm): 610x470x640
Weight gross weight: ≈ 50kg
Volume: ≈ 7.2L
Input power: 4kw
Power supply voltage: 220V

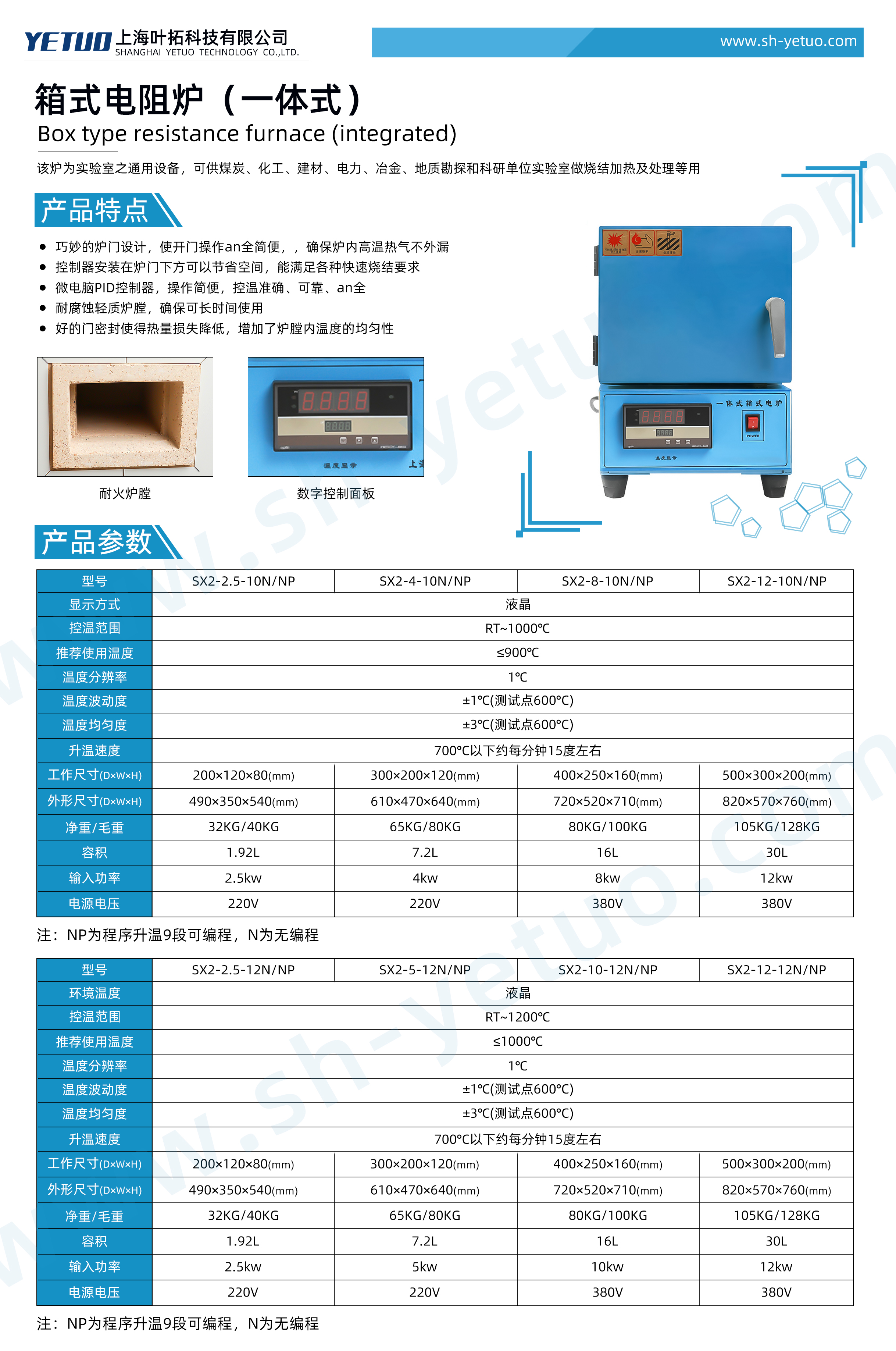

Yetuo SX2-4-10N integrated box type resistance furnace
Model: SX2-4-10N
Product Overview:
This furnace is a universal equipment for laboratories, which can be used for sintering, heating, and treatment in coal, chemical, building materials, electricity, metallurgy, geological exploration, and research unit laboratories;
Features of Ye Tuo SX2-4-10N Integrated Box Resistance Furnace
Clever furnace door design makes opening the door easy to operate, ensuring that high-temperature hot gas inside the furnace does not leak out
Installing the controller under the furnace door can save space and meet various requirements for rapid sintering.
The microcomputer PID controller is easy to operate, with accurate, reliable, and comprehensive temperature control.
Corrosion resistant lightweight furnace, ensuring long-term use.
Good door sealing reduces heat loss and increases the uniformity of temperature inside the furnace.
