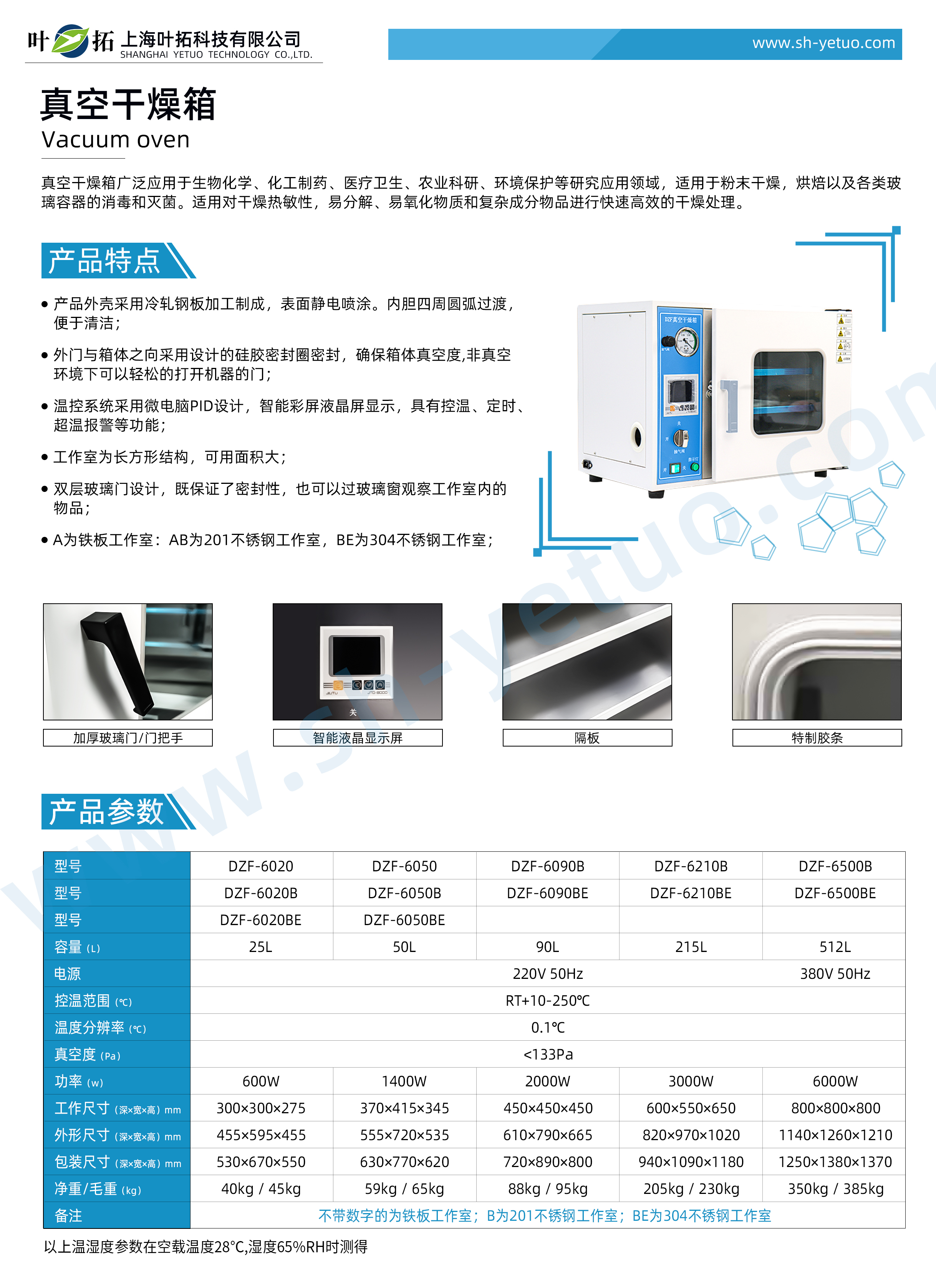

Model: DZF-6020
Inner liner studio material: galvanized liner
Power supply: 220V 50HZ
Capacity: 25L
Temperature control range: RT+10-250 ° C
Temperature resolution: 0.1 ° C
Temperature fluctuation: ± 1 ° C
Vacuum degree: ＜ 133pa
Power: 600W
Standard shelf quantity: 2 pieces
Shelf load capacity: 15kg
Studio size (depth x width x height) mm: 300X300X275
Product dimensions (depth x width x height) mm: 455X595X455
Product packaging size (depth x width x height) mm: 530X670X550
Net weight/gross weight kg: 45/45kg
Model: DZF-6020
Scope of application: Vacuum drying boxes are widely used in research and application fields such as biochemistry, chemical pharmaceuticals, health, agricultural research, environmental protection, etc. They are suitable for powder drying. Baking and sterilization of glass containers. Suitable for rapid drying treatment of drying heat sensitive, easily decomposable, easily oxidizable substances and complex components.
Product features
The product shell is made of cold-rolled steel plate processing, and the surface is electrostatically sprayed. Arc transition around the inner liner for easy cleaning.
The outer door and the box are sealed with a designed silicone sealing ring to ensure the vacuum degree of the box. The machine door can be easily opened in non vacuum environments.
The temperature control system adopts a microcomputer PID design, intelligent color screen LCD display, and has functions such as temperature control, timing, and over temperature alarm.
The studio has a rectangular structure and a large usable area.
The double-layer glass door design ensures sealing and allows for observation of items inside the studio through glass windows.
Can be equipped with program control instruments, printers, 486 interfaces, USB storage, SMS alarms, and other functions.
