Product Parameters:
Model: SHZ-D (III) (ABS backflow)
Number of exhaust heads: 2
Maximum vacuum degree: 0.098Mpa (20mbar)
Single head suction volume: 10L/min
Flow rate: 80L/min
Head: 10m
Safety function: Reverse flow prevention valve
Tap+check valve material: copper
Pump head material: polypropylene
Sink capacity: 15L
Power supply voltage: 1~110V, 60Hz or 220V, 50Hz or 220V, 60Hz
Power: 180W
Net weight: 11kg
Product size (LxWxH): 385x280x420mm

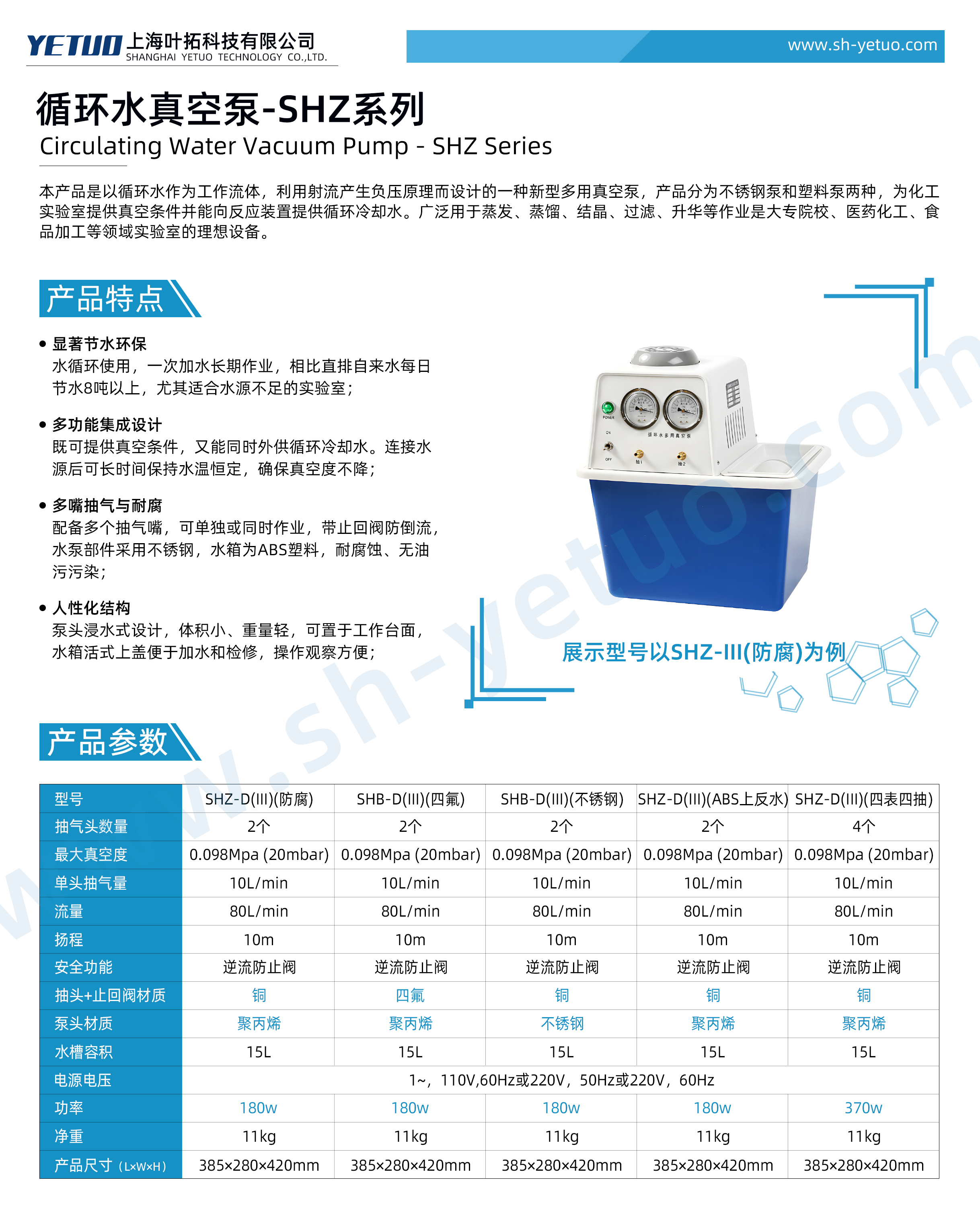

Yetuo SHZ-D (III) Anti water on ABS) circulating water vacuum pump
Product model: Yetuo SHZ-D (III) (Anti water on ABS)
Product Overview:
This product is a new type of multi-purpose vacuum pump designed using circulating water as the working fluid and the principle of negative pressure generated by jet flow. The product is divided into two types: stainless steel pump and plastic pump, providing vacuum conditions for chemical laboratories and circulating cooling water to reaction devices. Widely used in evaporation, distillation, crystallization, filtration, sublimation and other operations, it is an ideal equipment for laboratories in colleges, pharmaceuticals, chemical engineering, food processing and other fields.
Product features of Yetuo SHZ-D (III) (Anti water on ABS) circulating water vacuum pump
Significant water-saving and environmental protection
Water recycling, long-term operation with one water addition, saves more than 8 tons of water per day compared to direct tap water, especially suitable for laboratories with insufficient water sources;
● Multi functional integrated design
It can provide vacuum conditions and also supply circulating cooling water externally. After connecting to the water source, the water temperature can be kept constant for a long time to ensure that the vacuum degree does not decrease;
Multi mouth air extraction and corrosion resistance
Equipped with multiple exhaust nozzles that can operate separately or simultaneously, with check valves to prevent backflow. The water pump components are made of stainless steel, and the water tank is made of ABS plastic, which is corrosion-resistant and free of oil pollution;
● Humanized structure
The pump head is designed with a submerged design, which is small in size and light in weight. It can be placed on a workbench, and the water tank has a movable cover for easy water filling and maintenance. It is easy to operate and observe;
