Product Parameters:
Instrument model: YTNSY-150 (excluding rotor)
Operation method: button operation
Temperature control range: Room temperature~100 ° C
Ultimate vacuum value: ≤ 0.3mbar
Vacuum value display: Built in mechanical shock resistant vacuum gauge
Maximum capacity: 2mLx240
Maximum speed: 1500rpm
Standard rotor specification: 1.5mL/2mLx132
Optional rotor specifications: 1.5mL/2mLx132, 1.5mL/2mLx240
Centrifugal force: approximately 310xg
Centrifugal imaging function: optional
Vacuum pump: Optional vacuum oil pump/diaphragm pump
Cold trap temperature: optional -50 ° C, -65 ° C, -70 ° C, -110 ° C
Noise: 60dB
Power: 1000W
Power supply: AC220V 50/60Hz 10A
Dimensions: 530x380x350mm
Instrument weight: 35kg

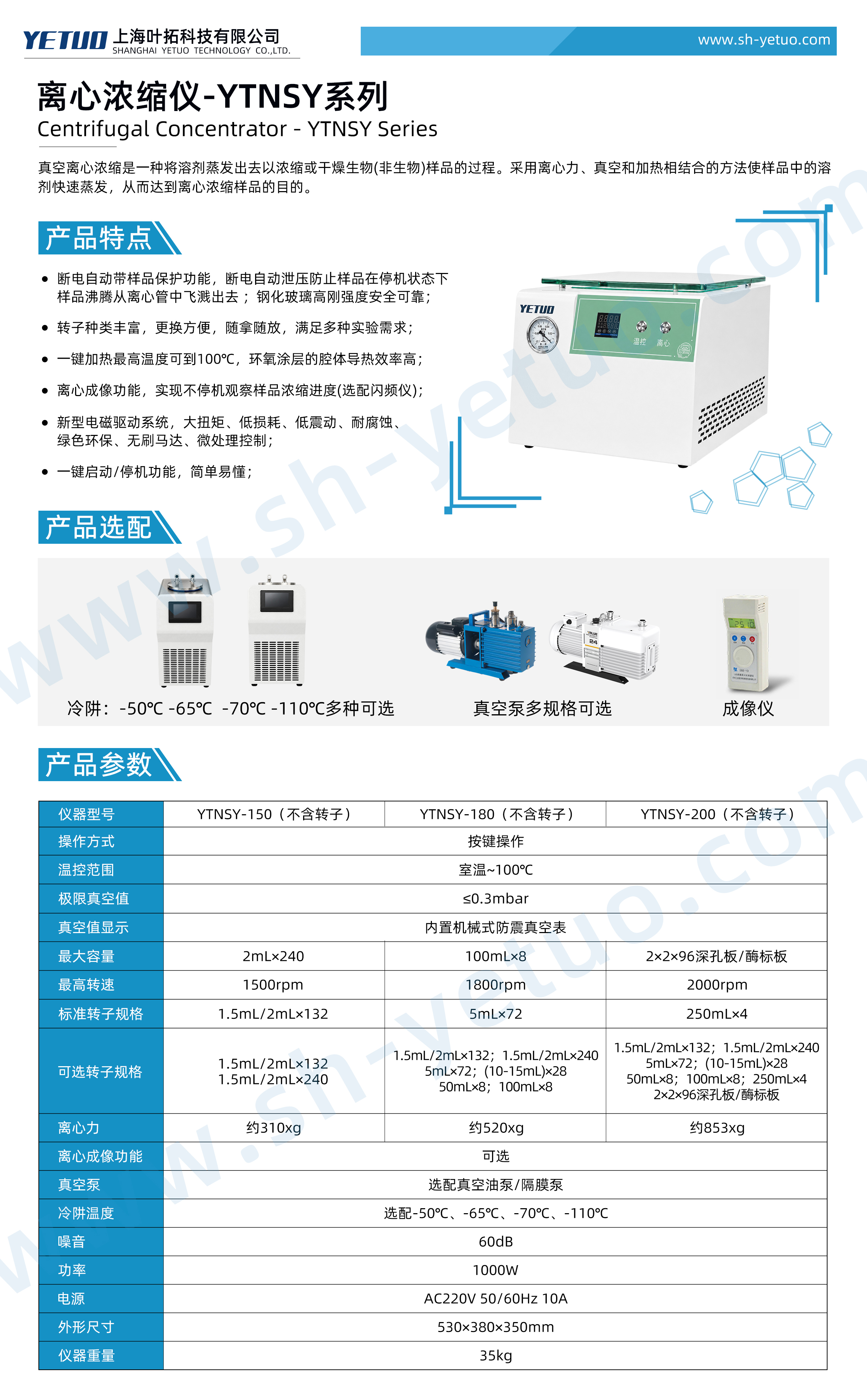

Yetuo YTNSY-150 (excluding rotor) centrifugal concentrator
Model: YTNSY-150 (excluding rotor)
Product Overview:
Vacuum centrifugal concentration is a process of evaporating solvents to concentrate or dry biological (non biological) samples. The method of combining centrifugal force, vacuum, and heating is used to rapidly evaporate the solvent in the sample, thereby achieving the purpose of centrifugal concentration of the sample.
YTNSY-150 (excluding rotor) centrifugal concentrator product features
● Automatic power-off with sample protection function, automatic pressure relief during power-off to prevent samples from boiling and splashing out of the centrifuge tube when the machine is stopped; Tempered glass with high rigidity, strength, safety and reliability;
● There are various types of rotors, which are easy to replace and can be placed with your palm to meet various experimental needs;
One click heating can reach a maximum temperature of 100 ℃, and the epoxy coated cavity has high thermal conductivity efficiency;
● Centrifugal imaging function, enabling non-stop observation of sample concentration progress (optional flash frequency analyzer);
New electromagnetic drive system with high torque, low loss, low vibration, corrosion resistance, green environmental protection, brushless motor, and microprocessor control;
One click start/stop function, simple and easy to understand;
