Product Parameters:
Model: YTNA-500
Nitrogen output flow rate: 0~500ml/min
Air output flow rate: 0~5000ml/min
Nitrogen output pressure: 0~0.4MPa (voltage stabilization accuracy ± 0.01MPa)
Air output pressure: 0~0.4MPa (voltage stabilization accuracy ± 0.02MPa)
Nitrogen gas purity: ≥ 99.9%
Air gas purity: particles ≤ 0.1 μ m, oil content ≤ 0.01mg/m3
Nitrogen impurity content: O2 ≤ 5ppm; H2O≤10ppm
Dew point: Nitrogen: ≤ -70 ° C; Air: ≤ -70 ° C
Working voltage: 220V 50Hz (single-phase)
Whole machine power: 550W (compressor 400W+nitrogen module 150W)
Work noise: Silent
Continuous working time: ≥ 24 hours (full load)
Dimensions (LxWxH): 303x575x393mm
Weight (kg): Approximately 28.75kg

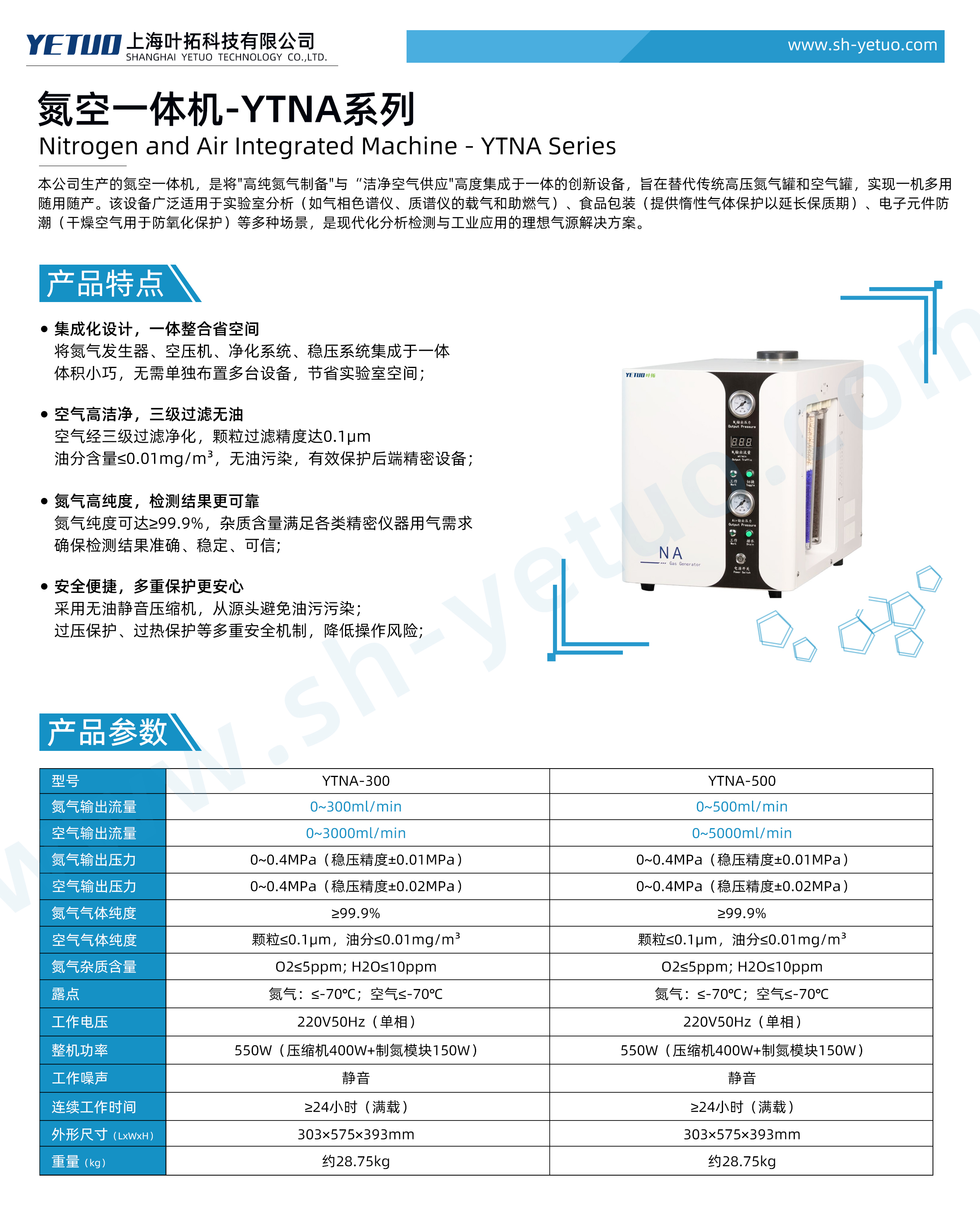

Yetuo YTNA-500 nitrogen air integrated machine
Model: YTNA-500
Product Overview:
The nitrogen air integrated machine produced by our company is an innovative equipment that highly integrates "high-purity nitrogen gas preparation" and "clean air supply". It aims to replace traditional high-pressure nitrogen and air tanks and achieve one machine, multiple uses, and on-demand production. This equipment is widely used in laboratory analysis (such as carrier gas and auxiliary gas for gas chromatographs and mass spectrometers), food packaging (providing inert gas protection to extend shelf life), electronic component moisture prevention (dry air for oxidation protection), and other scenarios. It is an ideal gas source solution for modern analysis, testing, and industrial applications.
Product Features of Yetuo YTNA-500 Nitrogen Air Integrated Machine
● Integrated design, integrated and space saving
Integrating the nitrogen generator, air compressor, purification system, and pressure stabilization system into a compact and compact design, eliminating the need for multiple separate devices and saving laboratory space;
● High cleanliness air, three-stage filtration without oil
The air is purified through three-stage filtration, with a particle filtration accuracy of 0.1 μ m and an oil content of ≤ 0.01mg/m3. There is no oil pollution, effectively protecting the precision equipment at the back end;
High purity nitrogen, more reliable detection results
The purity of nitrogen can reach ≥ 99.9%, and the impurity content meets the gas requirements of various precision instruments to ensure accurate, stable, and reliable detection results;
● Safe and convenient, multiple protections for peace of mind
Adopting oil-free silent compressors to avoid oil pollution from the source; Multiple safety mechanisms such as overvoltage protection and overheating protection reduce operational risks;
