Product Parameters:
Model: YTHA-300
Air output flow rate: 0~3000ml/min
Hydrogen output flow rate: 0~300ml/min
Hydrogen pressure: 0~0.4Mpa
Air pressure: 0~0.4Mpa
Hydrogen purity:>99.999%
Air quality: excellent
Working voltage: 220V ± 5 50Hz
Rated power: 210W
Water tank capacity: 1200ml
Environmental temperature: 0~40 ° C
Water quality requirements: purified water, distilled water, deionized water
Dimensions (LxWxH): 315x575x395mm
Weight (kg): 39.1kg

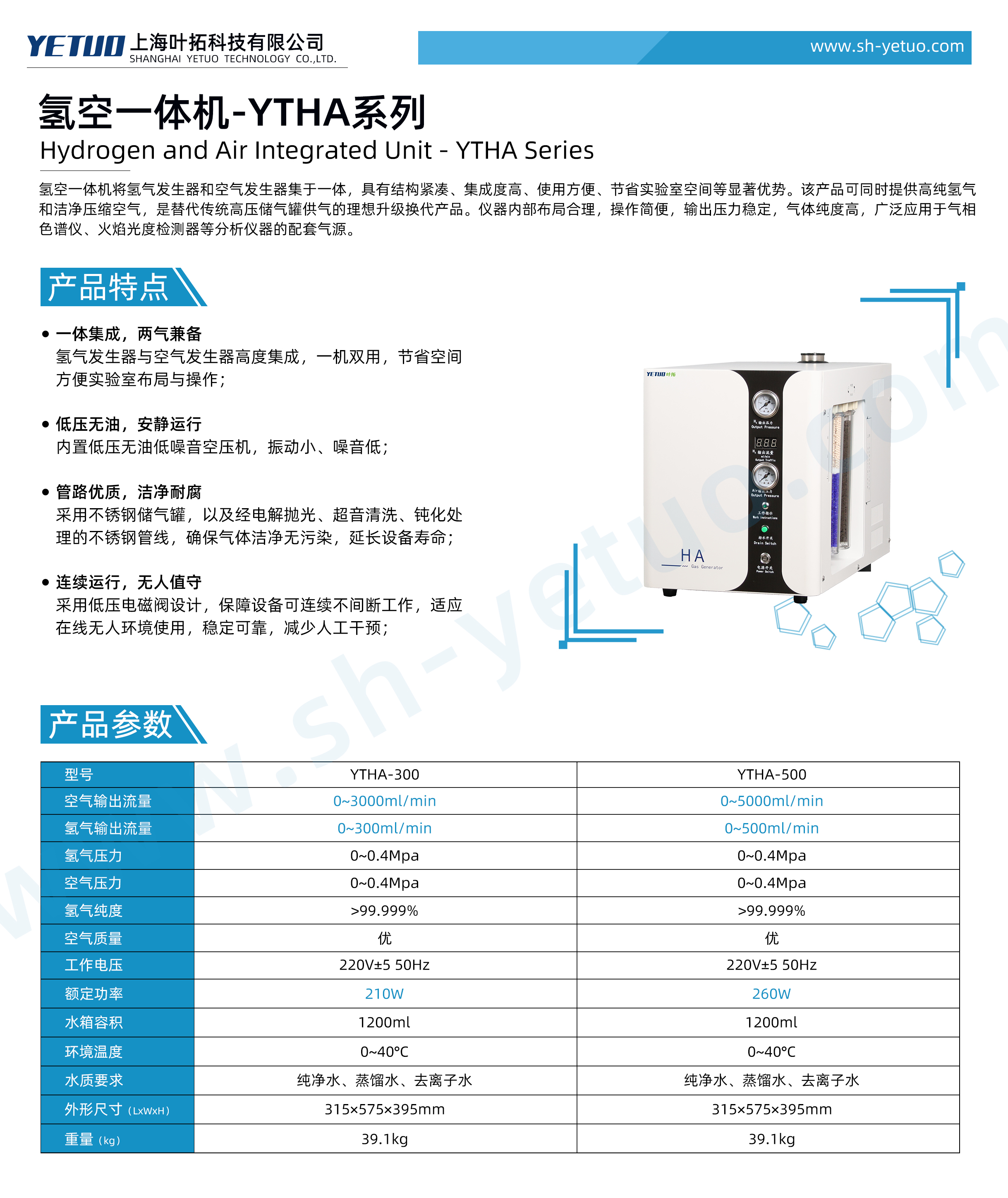

Yetuo YTHA-300 Hydrogen Air Integrated Machine
Model: YTHA-300
Product Overview:
The hydrogen air integrated machine integrates the hydrogen generator and air generator into one, with significant advantages such as tight structure, high integration, easy use, and saving laboratory space. This product can provide high-purity hydrogen and clean compressed air simultaneously, making it an ideal upgraded product to replace traditional high-pressure gas storage tanks for gas supply. The internal layout of the instrument is reasonable, the operation is simple, the output pressure is stable, and the gas purity is high. It is widely used as a supporting gas source for analytical instruments such as gas chromatographs and flame photometric detectors.
Product Features of Yetuo YTHA-300 Hydrogen Air Integrated Machine
● Integrated in one, with both air and gas capabilities
The hydrogen generator and air generator are highly integrated, with one machine for dual use, saving space and facilitating laboratory layout and operation;
Low pressure oil-free, quiet operation
Built in low-pressure oil-free and low-noise air compressor, with low vibration and noise;
High quality pipelines, clean and corrosion-resistant
Using stainless steel gas storage tanks and stainless steel pipelines that have undergone electrolytic polishing, ultrasonic cleaning, and passivation treatment to ensure clean and pollution-free gas and extend equipment life;
● Continuous operation, unmanned operation
Adopting a low-pressure solenoid valve design to ensure continuous and uninterrupted operation of the equipment, adapting to online unmanned environments, stable and reliable, and reducing manual intervention;
