Product Parameters:
Model: YTN2-500
Nitrogen purity:>99.9%
Output flow rate: 0~500mL/min
Output pressure: 0.4Mpa
Compressed air dew point: ≥ -70 ℃
Nitrogen dew point: -70
Noise: Silent
Air input pressure: 0.45-0.5Mpa
Working power supply: 220V ± 5 50Hz
Whole machine power: 180W
Environmental conditions: No large amount of dust or corrosive gases
Dimensions (LxWxH): 203x390x395mm
Weight (kg): 10.1kg

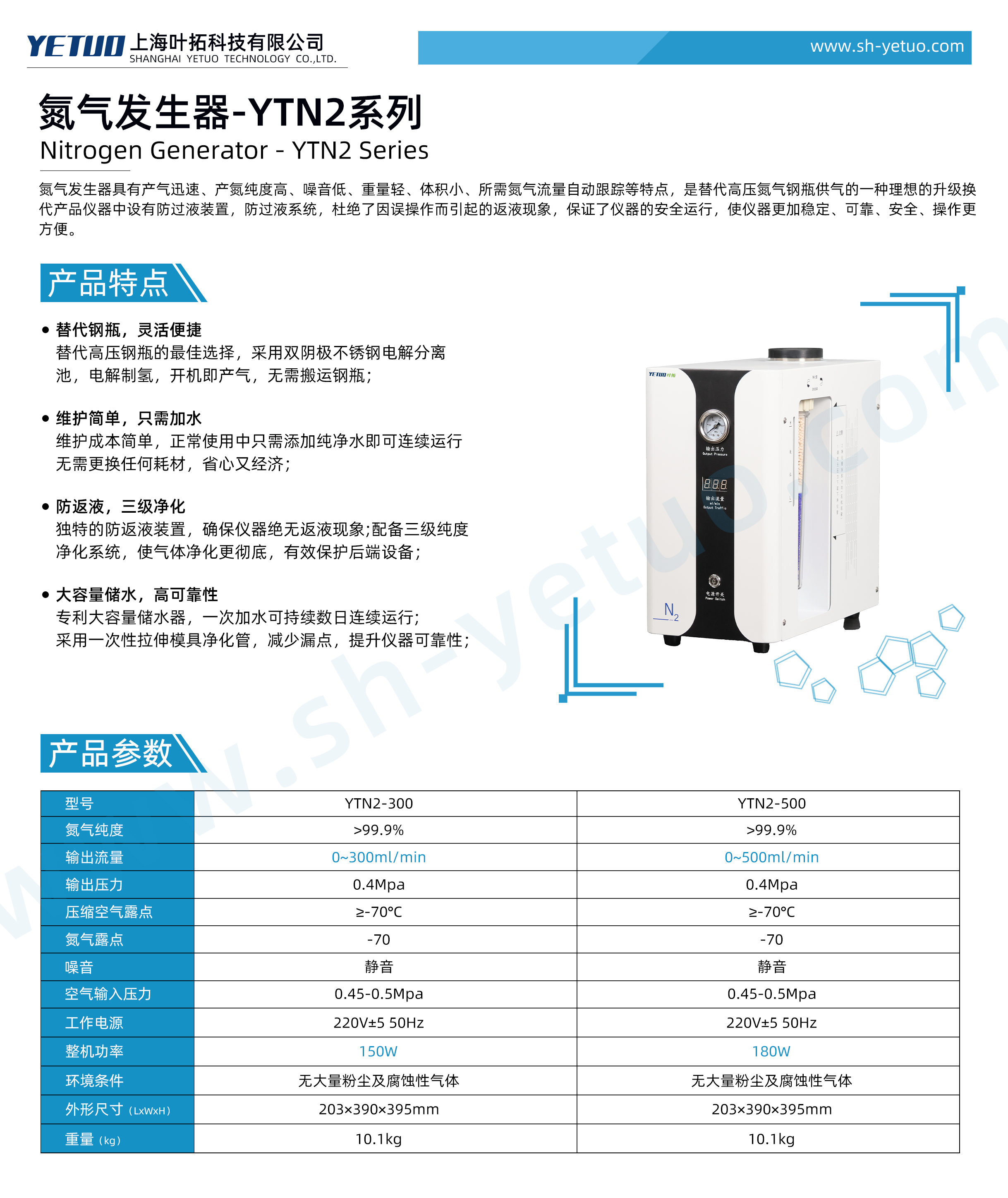

Yetuo YTN2-500 nitrogen generator
Model: YTN2-500
Product Overview:
The nitrogen generator has the characteristics of rapid gas production, high nitrogen purity, low noise, light weight, small volume, and automatic tracking of required nitrogen flow rate. It is an ideal upgraded product to replace high-pressure nitrogen gas cylinders for gas supply. The instrument is equipped with an anti liquid device and anti liquid system, which eliminates the phenomenon of liquid return caused by misoperation, ensures the safe operation of the instrument, and makes the instrument more stable, reliable, safe, and easy to operate.
Product Features of Yetuo YTN2-500 Nitrogen Generator
● Replace steel cylinders, flexible and convenient
The best choice to replace high-pressure steel cylinders is to use a dual cathode stainless steel electrolytic separation cell for hydrogen production through electrolysis, which produces gas immediately upon start-up without the need to transport the steel cylinders;
● Easy maintenance, just add water
The maintenance cost is simple, and during normal use, only pure water needs to be added for continuous operation without the need to replace any consumables, which is worry free and economical;
● Anti backflow, three-level purification
Unique anti backflow device ensures that the instrument has no backflow phenomenon; Equipped with a three-level purity purification system to ensure more thorough gas purification and effectively protect backend equipment;
● Large capacity water storage, high reliability
Patent large capacity water storage device, capable of continuous operation for several days with a single addition of water;
Using disposable stretching molds to purify tubes, reducing leakage points and improving instrument reliability;
