Product Parameters:
Model: YTCH2-600
Hydrogen purity: 99.999% (relative oxygen content)
Hydrogen flow rate: 0~600ml/min
Output pressure: 0~0.4MPa
Pressure stability:<0.001Mpa
Liquid tank capacity: 4 liters
Water quality requirement: Pure water with TDS value ≤ 5
Working power supply: 220V ± 10% 50Hz
Maximum power: 200W
Environmental conditions: No large amount of dust or corrosive gases
Environmental temperature: 0-40 ° C
Relative humidity:<85%
Dimensions (LxWxH): 396x243x395mm
Weight (kg): 11.8kg

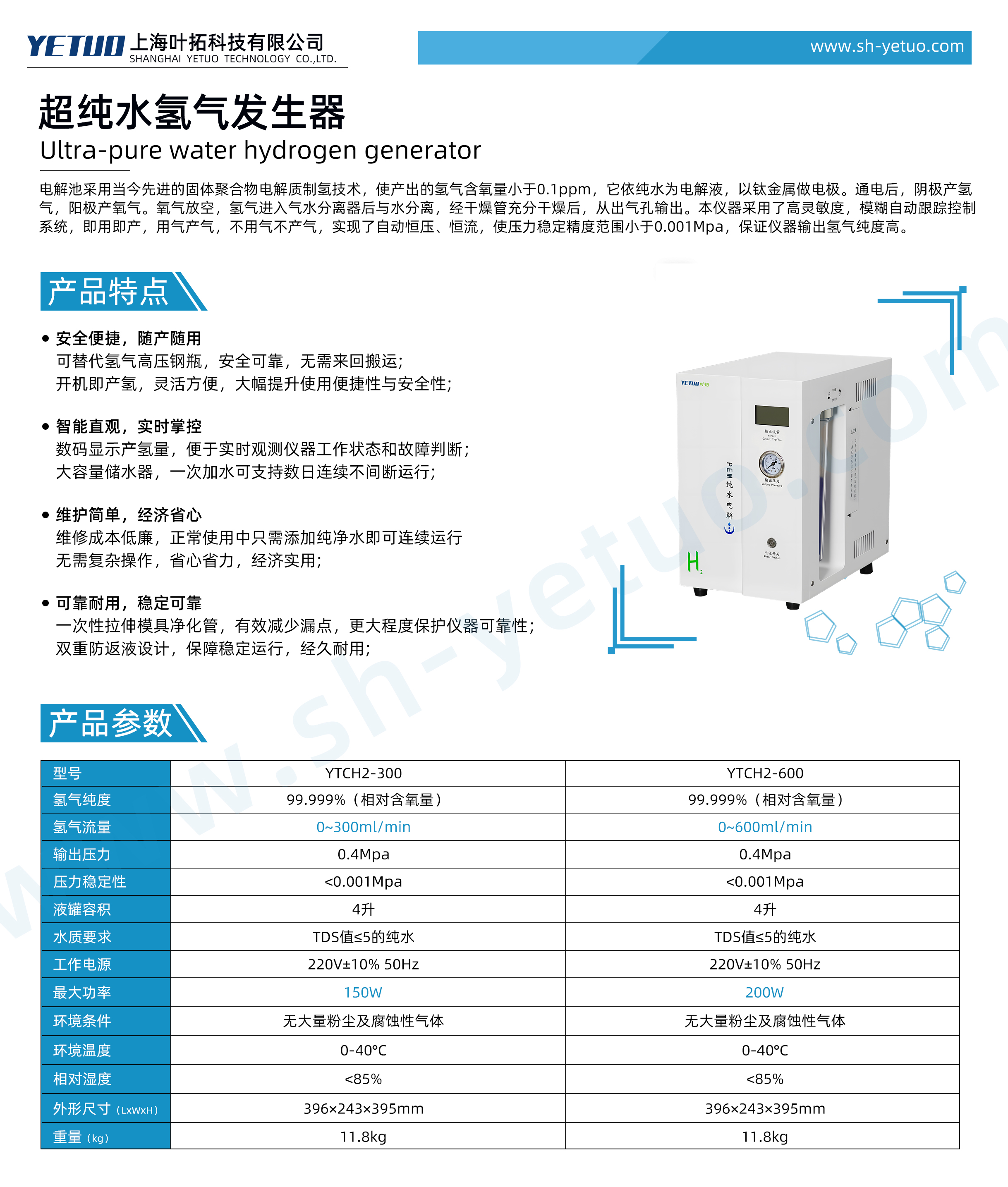

Yetuo YTCH2-600 Ultra Pure Water Hydrogen Generator
Model: YTCH2-600
Product Overview:
The electrolytic cell adopts advanced solid polymer electrolyte hydrogen production technology, which produces hydrogen with an oxygen content of less than 0.1ppm. It uses pure water as the electrolyte. Using titanium metal as electrodes. After being powered on. The cathode produces hydrogen gas, and the anode produces oxygen gas. Oxygen is released, and hydrogen enters the gas water separator and is separated from water. After being fully dried in the drying tube, it is output from the outlet. This instrument adopts a high sensitivity, fuzzy automatic tracking control system, which produces gas as soon as it is used, produces gas with gas, and does not produce gas without gas. It achieves automatic constant pressure and constant current, with a stable pressure accuracy range of less than 0.001Mpa, ensuring high purity of hydrogen gas output by the instrument.
Product Features of Yetuo YTCH2-600 Ultra Pure Water Hydrogen Generator
● Safe and convenient, ready to use with production
Can replace high-pressure hydrogen gas cylinders, safe and reliable, without the need for back and forth transportation; Hydrogen production upon startup, flexible and convenient, greatly improving the convenience and safety of use;
Intelligent and intuitive, real-time control
Digital display of hydrogen production, facilitating real-time observation of instrument working status and fault diagnosis; Large capacity water storage device, capable of supporting continuous operation for several days with a single addition of water;
● Easy maintenance, economical and worry free
The maintenance cost is low, and during normal use, only pure water needs to be added for continuous operation without complex operations, which is worry free, labor-saving, economical and practical;
● Reliable, durable, stable and reliable
Disposable stretching mold purification tube effectively reduces leakage points and protects instrument reliability to a greater extent; Double anti backflow design ensures stable operation and durability;
