Product Parameters:
Model: YTN2-1000
Nitrogen purity: 99.99% (relative oxygen content)
Output flow rate: 0~1000ml/min
Output pressure: 0.4Mpa
Input air pressure: 0.4Mpa
Working conditions: Power supply voltage 220V 50HZ
Environmental conditions: Temperature range of 10-40 ° C, relative temperature<85%, no dust or corrosive gases in the environment
Whole machine power: 200w
Dimensions (LxWxH): 555x325x380mm
Weight (kg): Approximately 24Kg

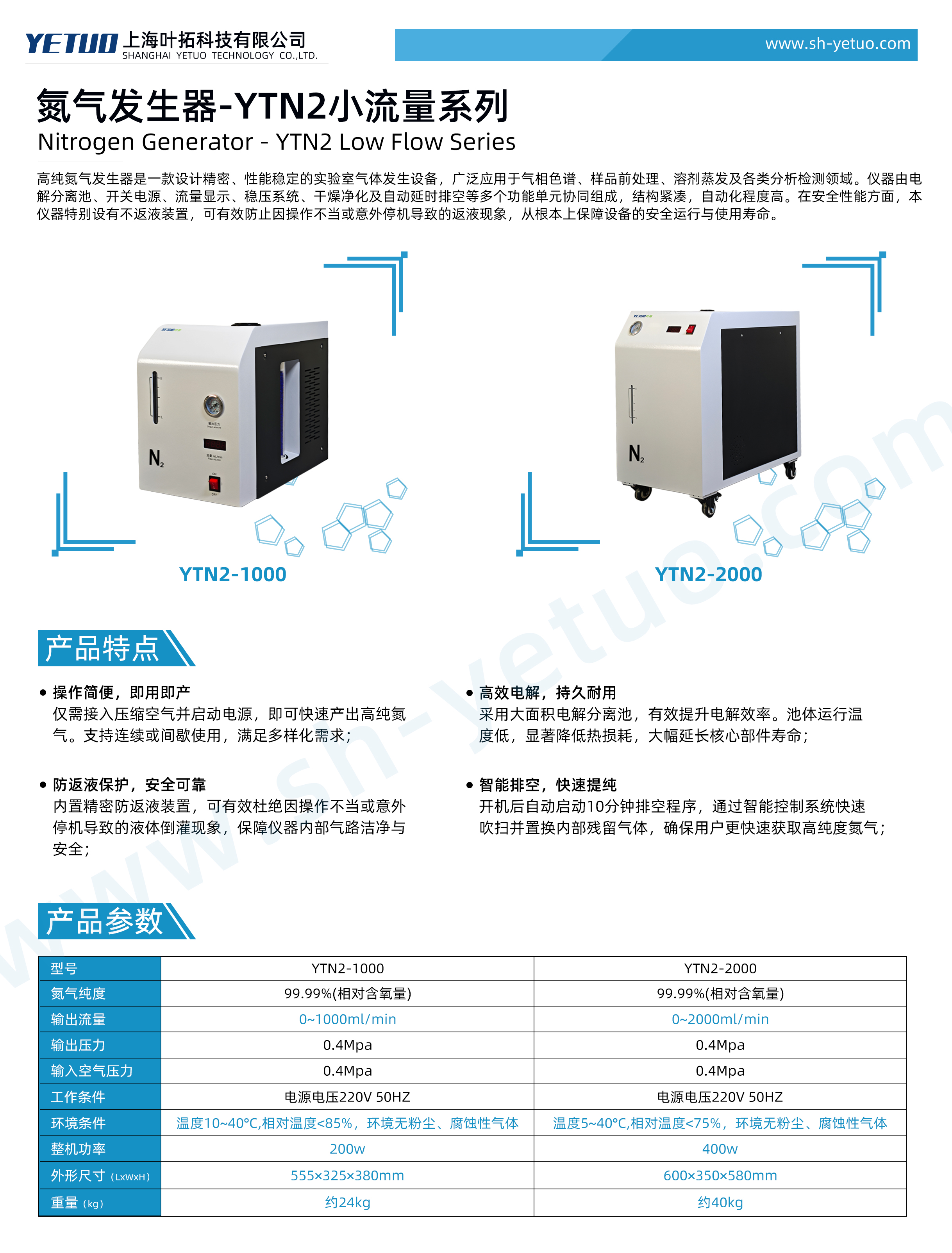

Yetuo YTN2-1000 Low Flow Series Nitrogen Generator
Model: YTN2-1000
Product Overview:
High purity nitrogen generator is a laboratory gas generation equipment with precise design and stable performance, widely used in gas chromatography, sample pretreatment, solvent evaporation, and various analytical and detection fields. The instrument is composed of multiple functional units such as electrolytic separation cell, switch power supply, flow display, voltage stabilization system, drying and purification, and automatic delayed emptying, with a compact structure and high degree of automation. In terms of safety performance, this instrument is specially equipped with a non backflow device, which can effectively prevent backflow caused by improper operation or accidental shutdown, fundamentally ensuring the safe operation and service life of the equipment.
Product Features of Yetuo YTN2-1000 Low Flow Series Nitrogen Generator
● Easy to operate, ready to use and produce
Simply connect compressed air and start the power supply to quickly produce high-purity nitrogen gas. Support continuous or intermittent use to meet diverse needs;
Efficient electrolysis, durable and long-lasting
Adopting a large-area electrolytic separation cell effectively improves electrolysis efficiency. The operating temperature of the pool is low, significantly reducing heat loss and prolonging the lifespan of core components;
● Anti backflow protection, safe and reliable
Built in precision anti backflow device can effectively prevent liquid backflow caused by improper operation or unexpected shutdown, ensuring the cleanliness and safety of the internal air circuit of the instrument;
Intelligent emptying and rapid purification
After starting up, the automatic 10 minute emptying program is initiated, and the internal residual gas is quickly purged and replaced through the intelligent control system to ensure that users can obtain high-purity nitrogen gas more quickly;
