Product Parameters:
Model: YTN2-5L
Nitrogen purity: 99.99%
Output flow rate: 0~5L/min
Output pressure: 0.4Mpa
Compressed air pressure: 0.6~0.8MPa
Compressed air dew point:<-20 ° C
Nitrogen dew point: -20 ° C
Destructive pressure:>1.0MPa
Noise: 55dB
Working power supply: 220V 50HZ
Whole machine power: 300W
Environmental conditions: Environmental temperature: 10-40 ° C; Relative humidity:<75%
Dimensions (LxWxH): 600x350x610mm
Weight (kg): Approximately 50Kg

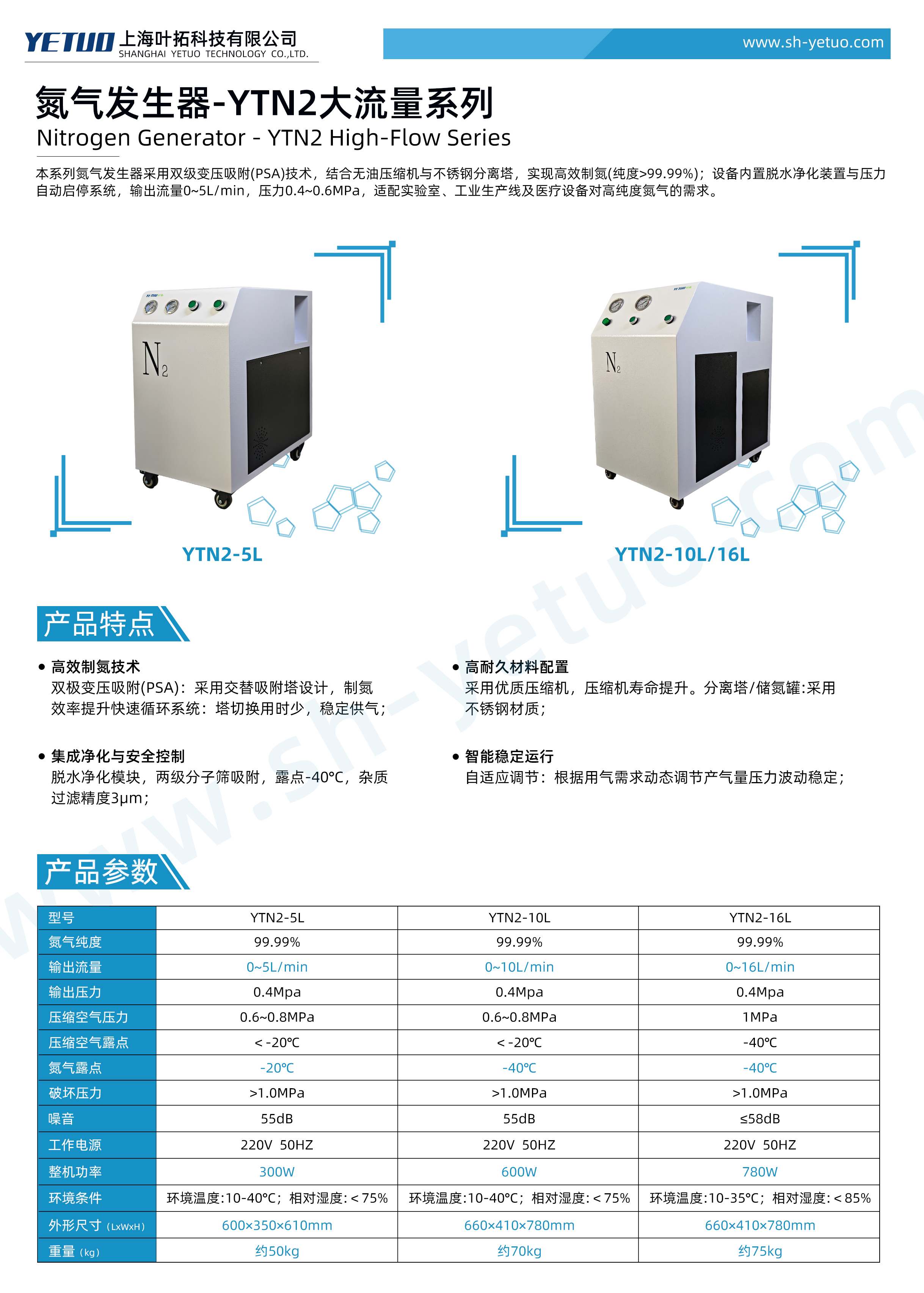

Yetuo YTN2-5L High Flow Series Nitrogen Generator
Model: YTN2-5L
Product Overview:
This series of nitrogen generators adopts two-stage pressure swing adsorption (PSA) technology, combined with oil-free compressors and stainless steel separation towers, to achieve efficient nitrogen production (purity>99.99%); The equipment is equipped with a dehydration purification device and an automatic pressure start stop system, with an output flow rate of 0-5L/min and a pressure of 0.4-0.6MPa, suitable for the high-purity nitrogen requirements of laboratories, industrial production lines, and medical equipment.
Product Features of Yetuo YTN2-5L High Flow Series Nitrogen Generator
Efficient nitrogen production technology
Bipolar pressure swing adsorption (PSA): adopting an alternating adsorption tower design to improve nitrogen production efficiency. Rapid circulation system: less tower switching time, stable gas supply;
● High durability material configuration
By using high-quality compressors, the lifespan of the compressor is extended. Separation tower/nitrogen storage tank: made of stainless steel material;
● Integrated purification and safety control
Dehydration and purification module, two-stage molecular sieve adsorption, dew point -40 ℃, impurity filtration accuracy of 3 μ m;
● Intelligent and stable operation
Adaptive adjustment: dynamically adjust the pressure fluctuation of gas production based on gas demand to ensure stability;
