Product Parameters:
Model: YTA-20L
Air purity: oil-free three-level purification
Output flow rate: 0~20L/min
Output pressure: 0~0.4Mpa
Environmental temperature: 5-40 ° C
Relative humidity: ≤ 70%
Noise: ≤ 53dB
Power supply voltage: 220V 50Hz
Rated power: 780W
Dimensions (LxWxH): 500x350x610mm
Weight (kg): Approximately 38Kg

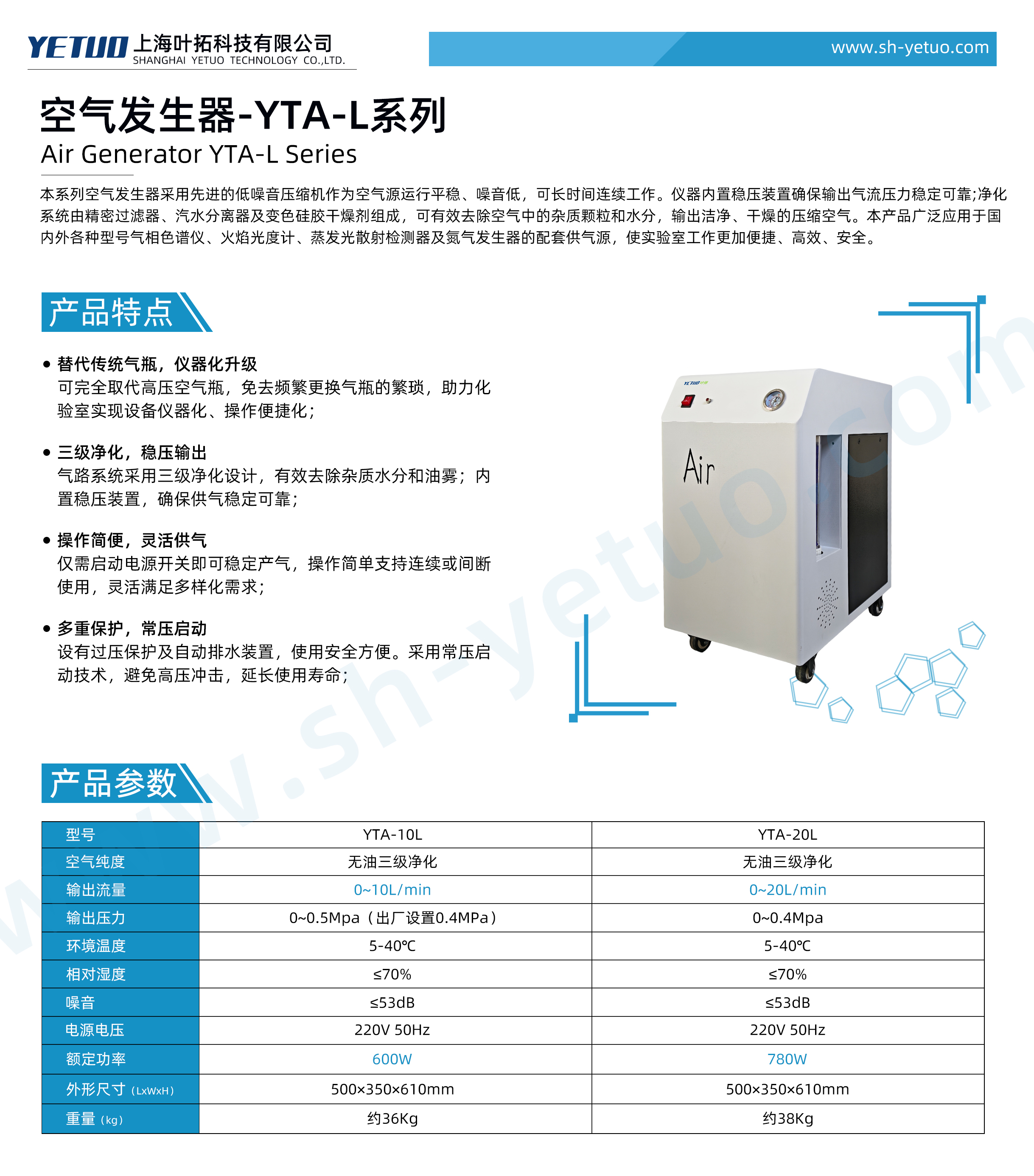

Yetuo YTA-20L Air Generator
Model: YTA-20L
Product Overview:
This series of air generators uses an advanced low-noise compressor as the air source, which runs smoothly and has low noise, and can work continuously for a long time. The instrument is equipped with a built-in voltage regulator to ensure stable and reliable output airflow pressure; The purification system consists of precision filters, steam water separators, and color changing silica gel desiccants, which can effectively remove impurities, particles, and moisture from the air, and output clean and dry compressed air. This product is widely used as a matching gas supply source for various models of gas chromatographs, flame photometers, evaporative light scattering detectors, and nitrogen generators at home and abroad, making laboratory work more convenient, efficient, and safe.
Product Features of Yetuo YTA-20L Air Generator
● Replace traditional gas cylinders and upgrade instrumentation
It can completely replace high-pressure air cylinders, eliminating the tedious process of frequent replacement of gas cylinders, and helping laboratories achieve equipment instrumentation and convenient operation;
● Three stage purification, stable voltage output
The pneumatic system adopts a three-level purification design, effectively removing impurities, moisture, and oil mist; Built in voltage regulator to ensure stable and reliable gas supply;
● Easy to operate, flexible gas supply
Simply turn on the power switch to stably produce gas, with simple operation and support for continuous or intermittent use, flexibly meeting diverse needs;
Multiple protections, starting at normal pressure
Equipped with overvoltage protection and automatic drainage device, it is safe and convenient to use. Adopting atmospheric pressure starting technology to avoid high-pressure impact and extend service life;
