Product Parameters:
Model: SPB-5E
Air purity: oil-free three-level purification
Output flow rate: 0-5L/min
Output pressure: 0~0.4MPa
Environmental temperature: 10~35 ° C
Relative humidity: ≤ 85%
Environmental conditions: No flammable, explosive, or corrosive gases, no strong mechanical vibrations
Noise: ≤ 40dB
Power supply voltage: 220V 50Hz
Rated power: 175w
Dimensions (LxWxH): 380x265x380mm
Weight (kg): Approximately 28Kg

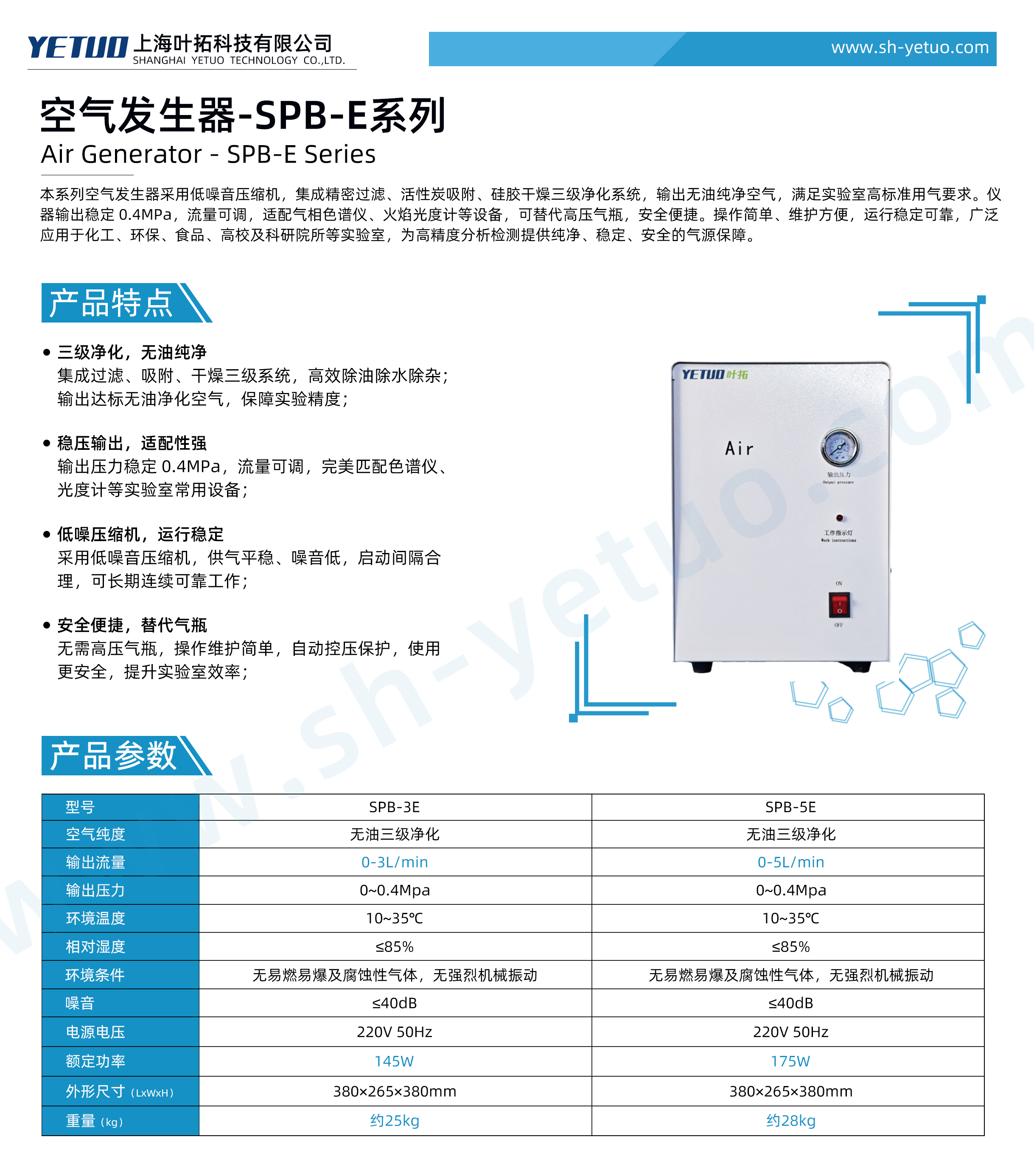

Yetuo SPB-5E Air Generator
Model: SPB-5E
Product Overview:
This series of air generators adopts a low-noise compressor, integrated with a three-stage purification system of precision filtration, activated carbon adsorption, and silicone drying, and outputs oil-free pure air to meet the high standard gas requirements of the laboratory. The instrument has a stable output of 0.4MPa, adjustable flow rate, and is suitable for equipment such as gas chromatography and flame photometry. Can replace high-pressure gas cylinders, safe and convenient. Easy to operate, easy to maintain, stable and reliable in operation, widely used in laboratories such as chemical engineering, environmental protection, food, universities and research institutes, providing a pure, stable and safe gas source guarantee for high-precision analysis and testing.
Product Features of Yetuo SPB-5E Air Generator
● Three level purification, oil-free and pure
Integrated filtration, adsorption, and drying three-level system for efficient oil, water, and impurity removal; Output standard oil-free purified air to ensure experimental accuracy;
● Stable voltage output, strong adaptability
Stable output pressure of 0.4MPa, adjustable flow rate, perfectly matched with commonly used laboratory equipment such as chromatography and photometer;
Low noise compressor, stable operation
Adopting a low-noise compressor, the gas supply is stable, the noise is low, the starting interval is reasonable, and it can work continuously and reliably for a long time;
● Safe and convenient, replacing gas cylinders
No need for high-pressure gas cylinders, simple operation and maintenance, automatic pressure control protection, safer use, and improved laboratory efficiency;
