Product Parameters:
Model: YTH2-3000
Hydrogen purity: 99.999% (relative oxygen content)
Output flow rate: 0-3000 ml/min
Output pressure: 0.4Mpa
Whole machine power: 1200w
Environmental temperature: 0~40 ° C
Relative humidity:<85%
Environmental conditions: No large amount of dust or corrosive gases
Dimensions (LxWxH): 600x350x580mm
Weight (kg): Approximately 52Kg
Power supply voltage: 220V 50Hz

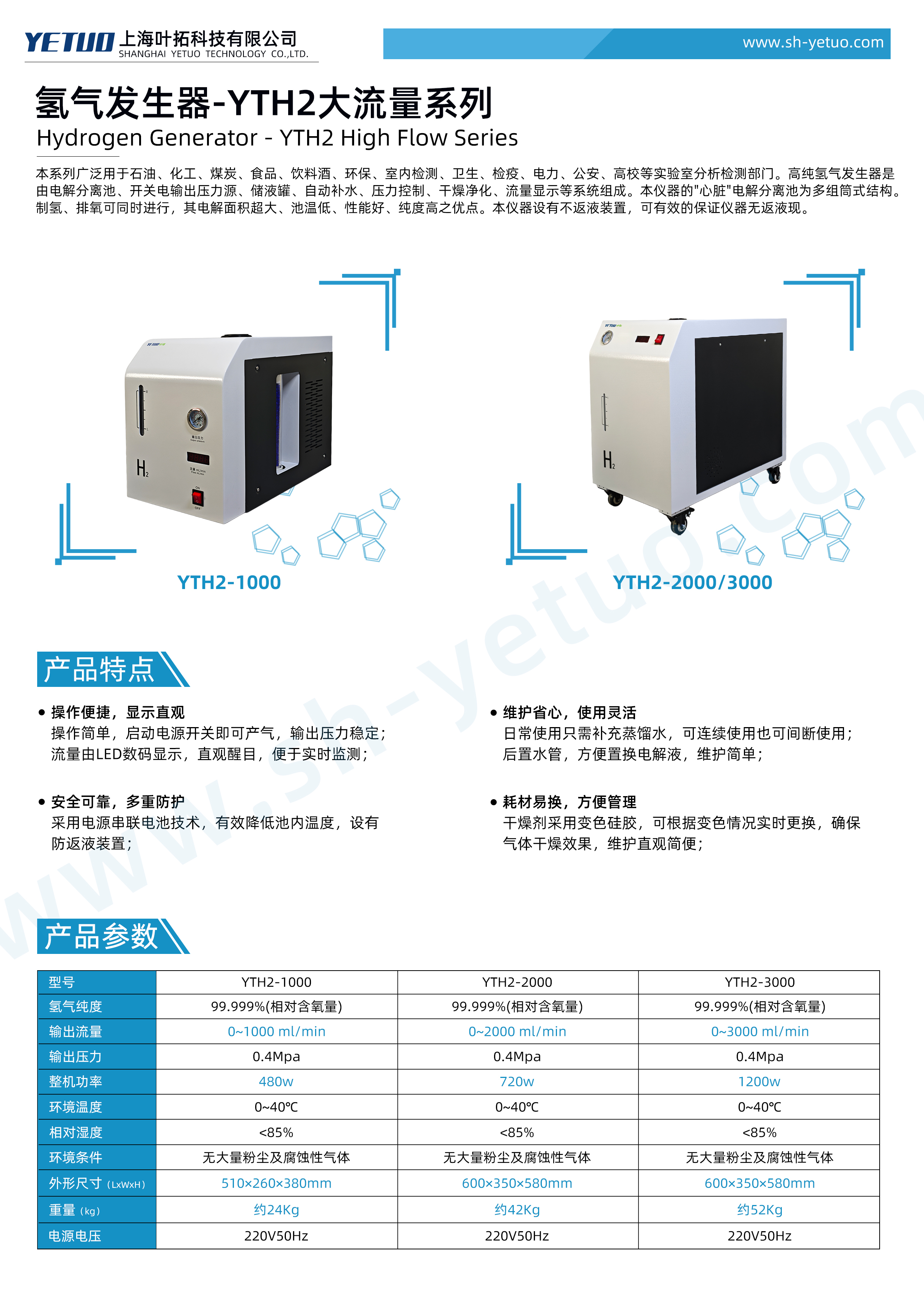

Yetuo YTH2-3000 High Flow Series Hydrogen Generator
Model: YTH2-3000
Product Overview:
This series is widely used in laboratory analysis and testing departments such as petroleum, chemical, coal, food, beverage and alcohol, environmental protection, indoor testing, health, quarantine, electricity, public security, universities, etc. The high-purity hydrogen generator consists of an electrolytic separation cell, a parallel output pressure source, a liquid storage tank, automatic water replenishment, pressure control, drying and purification, flow display and other systems. The "heart" electrolytic separation cell of this instrument is a multi group cylindrical structure. Hydrogen production and oxygen removal can be carried out simultaneously, with the advantages of a large electrolysis area, low cell temperature, good performance, and high purity. This instrument is equipped with a non reflux device, which can effectively ensure that the instrument has no reflux.
Product Features of Yetuo YTH2-3000 High Flow Series Hydrogen Generator
● Convenient operation and intuitive display
Easy to operate, just turn on the power switch to produce gas, and the output pressure is stable; The traffic is displayed by LED digital display, which is intuitive and easy to monitor in real time;
● Easy to maintain and flexible to use
Daily use only requires the addition of distilled water, which can be used continuously or intermittently; Rear mounted water pipe for easy replacement of electrolyte and simple maintenance;
● Safe and reliable, with multiple protections
Adopting power series battery technology, effectively reducing the temperature inside the pool, and equipped with anti backflow device;
● Consumables are easy to replace and manage
The desiccant is made of color changing silicone gel, which can be replaced in real time according to the color change situation to ensure the gas drying effect, and maintenance is intuitive and simple;
