Product Parameters:
Model: TH-500E
Type: Pure water type
Hydrogen purity: 99.999% (relative oxygen content)
Hydrogen flow rate: 0-500ml/min
Output pressure: 0.4Mpa
Pressure stability:<0.001 MPa
Liquid tank capacity: 2L
Water quality requirement: pure water
Working power supply: 220V 50Hz
Whole machine power: 180W
Environmental conditions: There are no flammable, explosive, or corrosive gases in the surrounding area, no strong mechanical vibrations, and no sudden temperature changes (ambient temperature of 10 ° C-35 ° C, relative humidity less than 85%)
Dimensions (LxWxH): 350x215x380mm
Weight (kg): Approximately 13kg

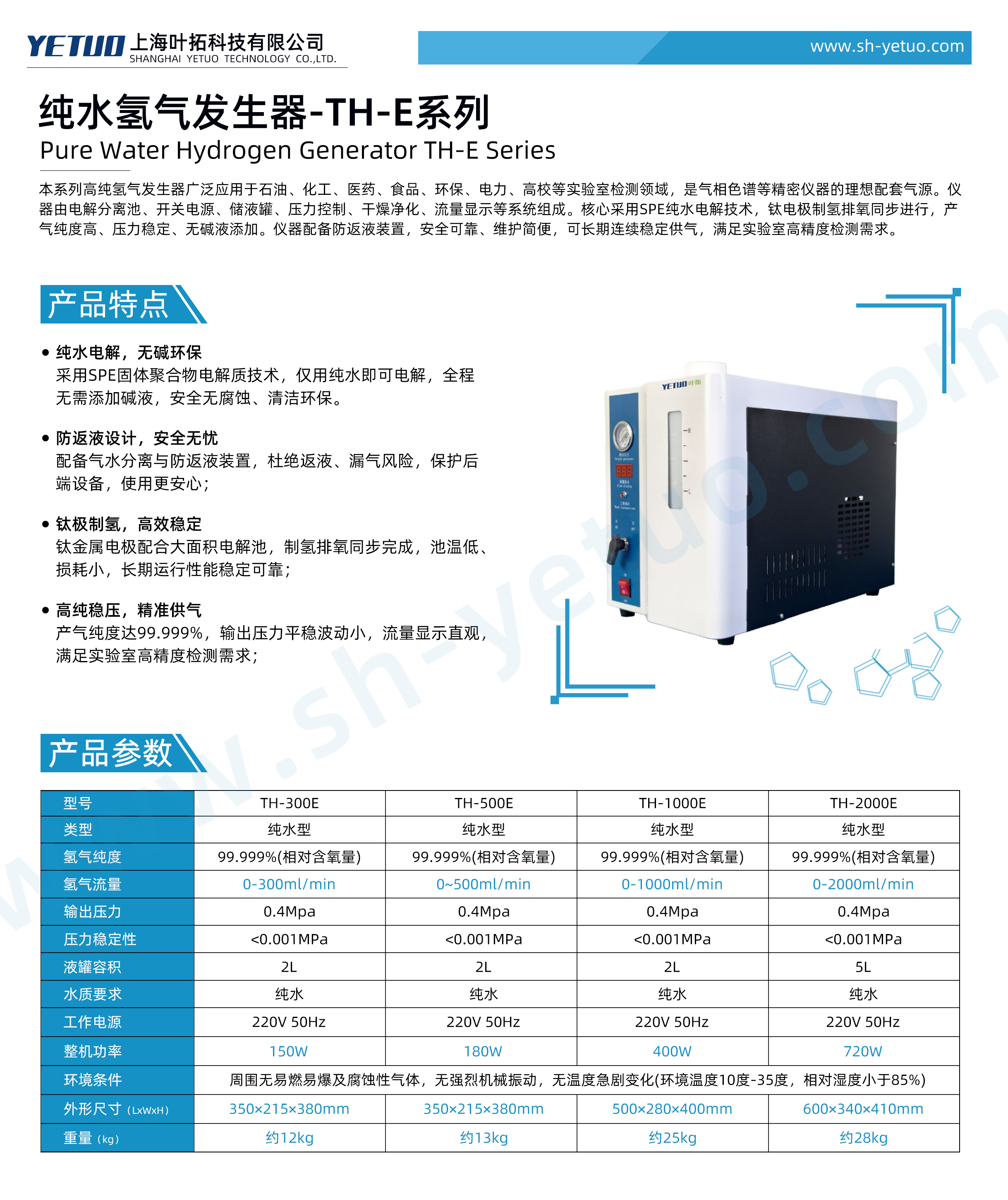

Yetuo TH-500E Pure Water Hydrogen Generator
Model: TH-500E
Product Overview:
This series of high-purity hydrogen generators is widely used in laboratory testing fields such as petroleum, chemical, pharmaceutical, food, environmental protection, power, and universities. It is an ideal matching gas source for precision instruments such as gas chromatography. The instrument consists of an electrolytic separation cell, a switch power supply, a liquid storage tank, pressure control, drying and purification, flow display and other systems. The core adopts SPE pure water electrolysis technology, and the titanium electrode produces hydrogen and oxygen synchronously, with high gas purity, stable pressure, and no alkali solution added. The instrument is equipped with an anti backflow device, which is safe, reliable, easy to maintain, and can provide long-term continuous and stable gas supply to meet the high-precision testing needs of the laboratory.
Product Features of Yetuo TH-500E Pure Water Hydrogen Generator
Pure water electrolysis, alkali free and environmentally friendly
Adopting SPE solid polymer electrolyte technology, electrolysis can be carried out using only pure water, without the need for alkaline solution throughout the process, which is safe, non corrosive, clean and environmentally friendly.
● Anti backflow design, safe and worry free
Equipped with gas water separation and anti backflow device, it eliminates the risk of backflow and gas leakage, protects backend equipment, and ensures safer use;
Titanium electrode for hydrogen production, efficient and stable
Titanium metal electrode combined with large-area electrolytic cell, hydrogen production and oxygen discharge are completed synchronously, with low cell temperature, low loss, and stable and reliable long-term operation performance;
● High purity and stable pressure, precise gas supply
The purity of the produced gas reaches 99.999%, the output pressure is stable with minimal fluctuations, and the flow display is intuitive, meeting the high-precision testing requirements of the laboratory;
