Product Parameters:
Model: SPH-5
Gas purity: 99.999% (relative oxygen content)
Output flow rate: 0~500ml/min
Output pressure: 0.4MPa
Environmental temperature: 10-35 ° C
Relative humidity:<85%
Environmental conditions: No flammable, explosive or corrosive gases, no strong vibrations or sudden temperature changes
Power supply voltage: 220V 50Hz
Rated power: 180w
Dimensions (LxWxH): 370x185x385mm
Weight (kg): Approximately 13Kg

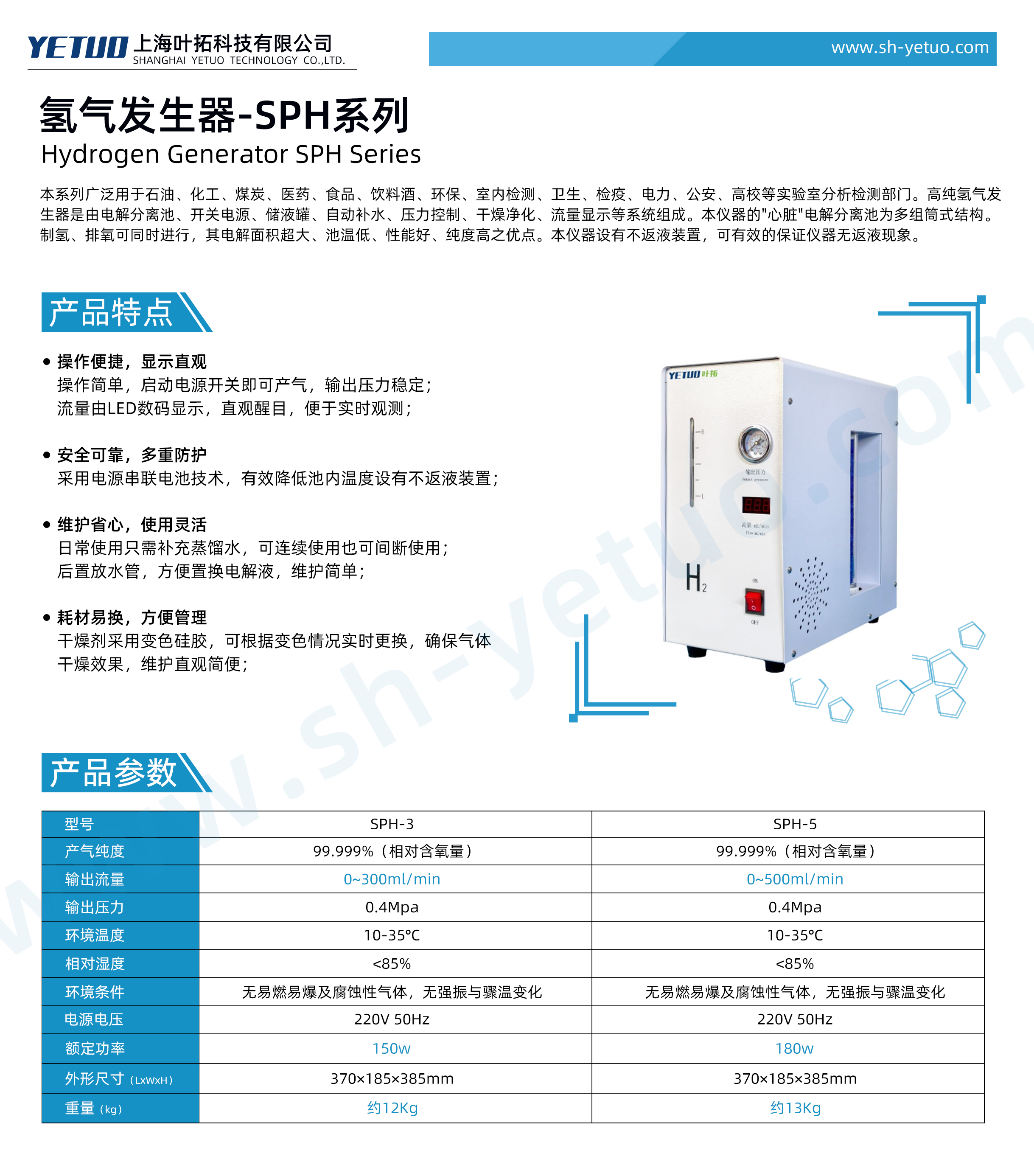

Yetuo SPH-5 Hydrogen Generator
Model: SPH-5
Product Overview:
This series is widely used in laboratory analysis and testing departments such as petroleum, chemical, coal, medicine, food, beverage, environmental protection, indoor testing, health, quarantine, electricity, public security, universities, etc. The high-purity hydrogen generator is composed of an electrolytic separation cell, a switch power supply, a liquid storage tank, automatic water replenishment, pressure control, drying and purification, flow display and other systems. The "heart" electrolytic separation cell of this instrument is a multi group cylindrical structure. Hydrogen production and oxygen removal can be carried out simultaneously, with the advantages of a large electrolysis area, low cell temperature, good performance, and high purity. This instrument is equipped with a non reflux device, which can effectively ensure that there is no reflux phenomenon in the instrument.
Product Features of Yetuo SPH-5 Hydrogen Generator
● Convenient operation and intuitive display
Easy to operate, just turn on the power switch to produce gas, and the output pressure is stable; The traffic is displayed by LED digital display, which is intuitive and easy to observe in real time;
● Safe and reliable, with multiple protections
Adopting power series battery technology, effectively reducing the temperature inside the pool and equipped with a non backflow device;
● Easy to maintain and flexible to use
Daily use only requires the addition of distilled water, which can be used continuously or intermittently; Rear drain pipe for easy replacement of electrolyte and simple maintenance;
● Consumables are easy to replace and manage
The desiccant is made of color changing silicone gel, which can be replaced in real time according to the color change situation to ensure the gas drying effect, and maintenance is intuitive and simple;
