Product Parameters:
Product model: YT-RE52BA
Vacuum degree achievable: below 399.9Pa (3mmHg)
Temperature regulation range: Room temperature+5-90 ° C
Temperature regulation accuracy: ± 1 ° C
Temperature control: microcomputer PID control
Temperature setting and display: Key input setting and numerical display
Safety function: fuse
Main motor power: 25W
Water bath power: 1.5KW
Condenser: Vertical double serpentine coil with a cooling area of 0.15m '
Rotating connecting shaft: Short type rotating glass shaft standard grinding mouth 29/38, inner diameter 16mm x length 162mm
Sample bottle: Pear shaped flask 1L TS2938 standard
Recycling bottle: spherical flask 1L, standard configuration for S35
Vacuum sealing gasket: dual sealing gasket made of PTFE, PTFE, and fluorinated rubber
Lift stroke: Weight balanced 100mm+auxiliary extension 150mm
Operating environment temperature: 5-35 ℃
Input power supply: AC220V 50HZ
Bath pot material: SUS305
Weight: 13KG
Capacity: 2L
Dimensions: 510x380x750mm
Bath pot size: diameter 250x depth 120mm
*Note: YT-52BA, CA is the basic model, can only be used for water, manual, D-type pipe; The YT-RE1000 series is an upgraded version that can be used for both oil and water, with automatic lifting and D-shaped pipes

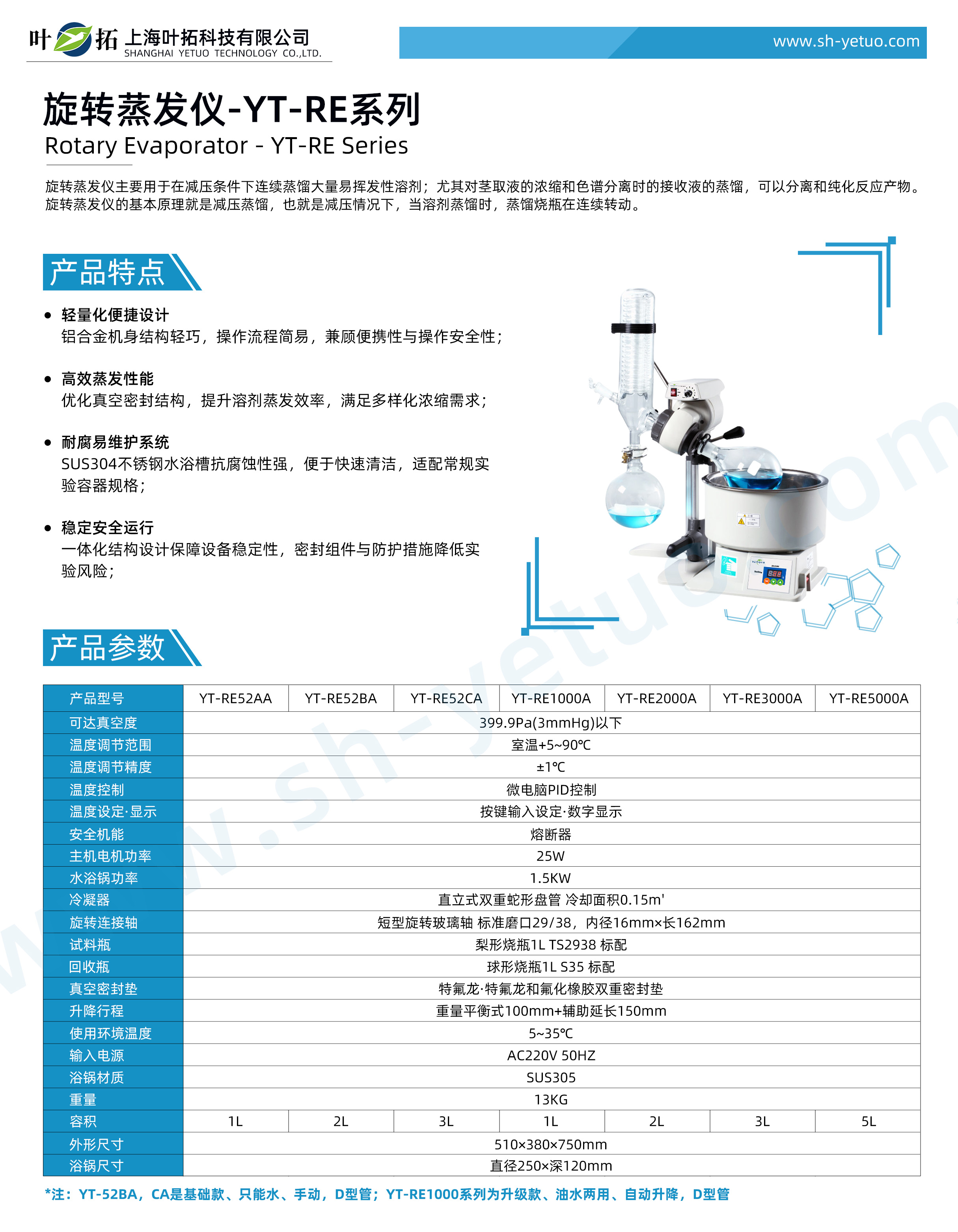

Yetuo YT-RE52BA rotary evaporator
Model: YT-RE52BA
Product Overview:
The rotary evaporator is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure conditions; Especially for the concentration of extraction liquid and distillation of the receiving liquid during chromatographic separation, reaction products can be separated and purified; The basic principle of a rotary evaporator is vacuum distillation, which means that under vacuum conditions, when the solvent is distilled, the distillation flask rotates continuously.
Product Features of Yetuo YT-RE52BA Rotary Evaporator
● Lightweight and convenient design
The aluminum alloy body structure is lightweight, the operation process is simple, and it balances portability and operational safety;
● Efficient evaporation performance
Optimize the vacuum sealing structure, improve solvent evaporation efficiency, and meet diverse concentration needs;
● Corrosion resistant and easy to maintain system
SUS304 stainless steel water bath has strong corrosion resistance, is easy to clean quickly, and is suitable for conventional experimental container specifications;
● Stable and safe operation
Integrated structural design ensures equipment stability, sealing components and protective measures reduce experimental risks;
