Product Parameters:
Product model: YT-LC-4000W (industrial type)
Power: 4000W Automatic power adjustment
Instrument processing capacity range: 1-50L (requires corresponding variable amplitude rod and reaction kettle+mixing)
Display mode: True color 4.3-inch touch screen display
Single ultrasound time: 0.1-99.9 seconds
Single gap time: 0.1-99.9 seconds
Total time (ultrasound+gap): 1-99H59M59S
Frequency range: 19.5-20.5KHZ
Temperature control range: 0-100 degrees (optional low-temperature constant temperature)
Alarm function: temperature, time, overload, no-load, over temperature
Standard variable amplitude pole: φ 40 * 250mm multi-point extended type
Optional variable amplitude pole: φ 40 * 370mm multi-point extended type
Data storage: 20 sets
Power supply: 220V/50Hz
Control mode: microcontroller+TFT touch control
Net weight of ultrasonic host: 10kg
Gross weight of ultrasonic host (including transducer):/
Gross weight of soundproof box: This model does not have a soundproof box
Net weight of transducer+amplitude rod: 6kg
Instrument net size (depth * width * height): 490 * 225 * 290 (mm)
Instrument dimensions (depth * width * height):/
Host packaging (length * width * height): 470 * 305 * 430 (mm)
Dimensions of the soundproof box (depth * width * height):/
Material of transducer: Alcoa 7075
Installation method of transducer: stainless steel quick opening clamp
Variable amplitude rod material: ultrasonic special titanium alloy
Product function: Voice alarm and prompt function
Optional: transducer bracket (built-in for 4kw, optional for 3kw), jacket thermostatic cup, low-temperature thermostatic bath

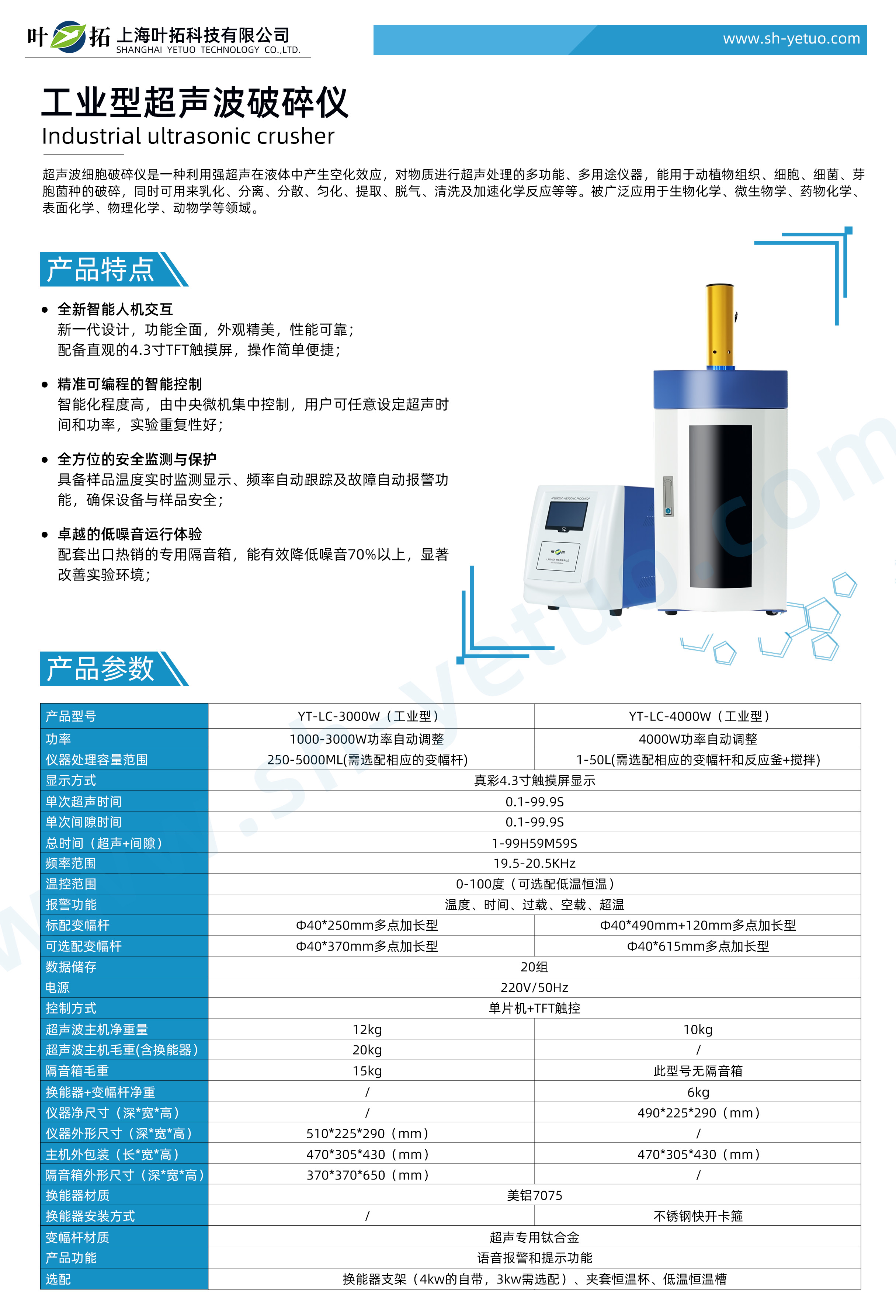

Yetuo YT-LC-4000W Industrial Ultrasonic Cell disruptor
Model: YT-LC-4000W
Product Overview:
Ultrasonic cell disruptor is a multifunctional and multi-purpose instrument that uses strong ultrasound to generate cavitation effect in liquid and treat substances with ultrasound. It can be used for the fragmentation of animal and plant tissues, cells, bacteria, and spore forming bacteria, as well as for emulsification, separation, dispersion, homogenization, extraction, degassing, cleaning, and accelerating chemical reactions. Widely used in fields such as biochemistry, microbiology, medicinal chemistry, surface chemistry, physical chemistry, zoology, etc.
Product features of Yetuo YT-LC-4000W industrial ultrasonic cell disruptor
New intelligent human-computer interaction
New generation design, comprehensive functions, exquisite appearance, and reliable performance; Equipped with an intuitive 4.3-inch TFT touch screen, the operation is simple and convenient;
Accurate and programmable intelligent control
High degree of intelligence, centrally controlled by a central microcomputer, allowing users to freely set ultrasound time and power, with good experimental repeatability;
● Comprehensive safety monitoring and protection
Equipped with real-time monitoring and display of sample temperature, automatic frequency tracking, and automatic fault alarm functions to ensure the safety of equipment and samples;
Excellent low-noise operating experience
Special soundproof speakers that are popular for export can effectively reduce noise by more than 70% and significantly improve the experimental environment;
