Product parameters:
Instrument model: YTNSY-2A (excluding rotor)
Operation method: button operation
Temperature control range: Room temperature~100 ° C
Ultimate vacuum value: ≤ 0.3mbar
Vacuum value display: Built in mechanical shock resistant vacuum gauge
Maximum capacity: 100mL × 8
Maximum speed: 1800rpm
Standard rotor specification: 5mL × 72
Optional rotor specifications: 1.5mL/2mL × 132; 1.5mL/2mL×240
5mLx72； (10-15mL)x28
50mLx8； 100mLx8
Centrifugal force: approximately 520xg
Centrifugal imaging function: optional
Vacuum pump: Optional vacuum oil pump/diaphragm pump
Cold trap temperature: optional -50 ℃, -65 ℃, -70 ℃, -110 ℃
Noise: 60dB
Power: 1000W
Power supply: AC220V 50/60Hz 10A
Dimensions: 530mm × 380mm × 350mm
Instrument weight: 35kg

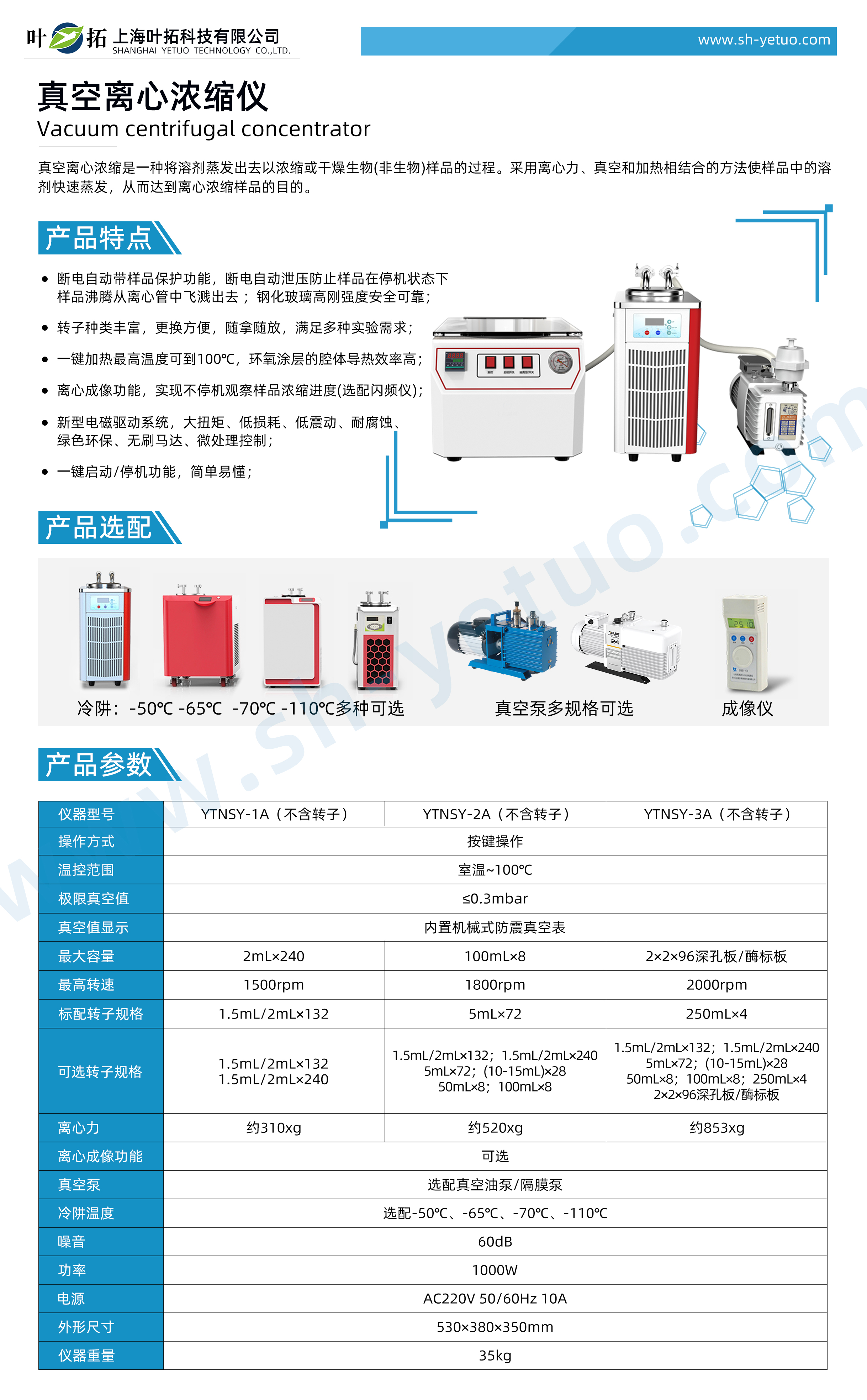

Yetuo YTNSY-2A (without rotor) vacuum centrifugal concentrator
Model: YTNSY-2A (excluding rotor)
Product Overview:
Vacuum centrifugal concentration is a process of evaporating solvents to concentrate or dry biological (non biological) samples. The method of combining centrifugal force, vacuum, and heating is used to rapidly evaporate the solvent in the sample, thereby achieving the purpose of centrifugal concentration of the sample.
Product features of Yetuo YTNSY-2A (excluding rotor) vacuum centrifugal concentrator
● Automatic power-off with sample protection function, automatic pressure relief during power-off to prevent samples from boiling and splashing out of the centrifuge tube when the machine is stopped; Tempered glass with high rigidity, strength, safety and reliability;
● Rich variety of rotors, easy to replace, can be taken and placed at any time, meeting various experimental needs;
One click heating can reach a maximum temperature of 100 ℃, and the epoxy coated cavity has high thermal conductivity efficiency;
● Centrifugal imaging function, enabling non-stop observation of sample concentration progress (optional flash frequency analyzer);
New electromagnetic drive system, high torque, low loss, low vibration, corrosion-resistant and environmentally friendly, brushless motor, microprocessing control;
One click start/stop function, simple and easy to understand;
