Product parameters:
Instrument Model: YTZLN-F Integrated (Touchscreen)
Features: Maximum space saving: Integrated design with built-in vacuum pump and cold trap
Temperature control range: Room temperature~100 ° C
Timing range: Touch screen model 0~9999h59min, button model 0~99h59min
Ultimate vacuum value: ≤ 0.3mbar
Cold trap temperature: ultra-low temperature (-110 ° C), other conventional cold traps -50 ° C/-65 ° C/-70 ° C optional
Injection bottle/rotor: 60 * 4ml/32 * 8ml Injection bottle/132 * 1.5ml/132 * 2ml/72 * 5ml/12 * 10ml/12 * 15ml/
6 * 50ml/8 * 50ml/90 * 2ml * 228 * (10ml-15ml)/8 * 100ml/4 * 250ml and other rotors can be selected (customizable)
Maximum centrifugal force: 550xg
Centrifugal imaging function: available
Maximum speed: 100-2000r/min
Power supply: AC220V 50/60Hz 10A
Noise level: 65dB
Vacuum pump: optional (variable frequency diaphragm/two-stage rotary vane)/(CB-ZLN-EL model with built-in diaphragm pump)
Program group: A total of 48 sets of programs can be set, and 8 sets of programs can be selected to run simultaneously for gradient setting (CB-ZLN-A/JX-ZLN-C are 9 sets of programs)
Note: The above models are separate hosts without rotors, and rotors need to be additionally selected

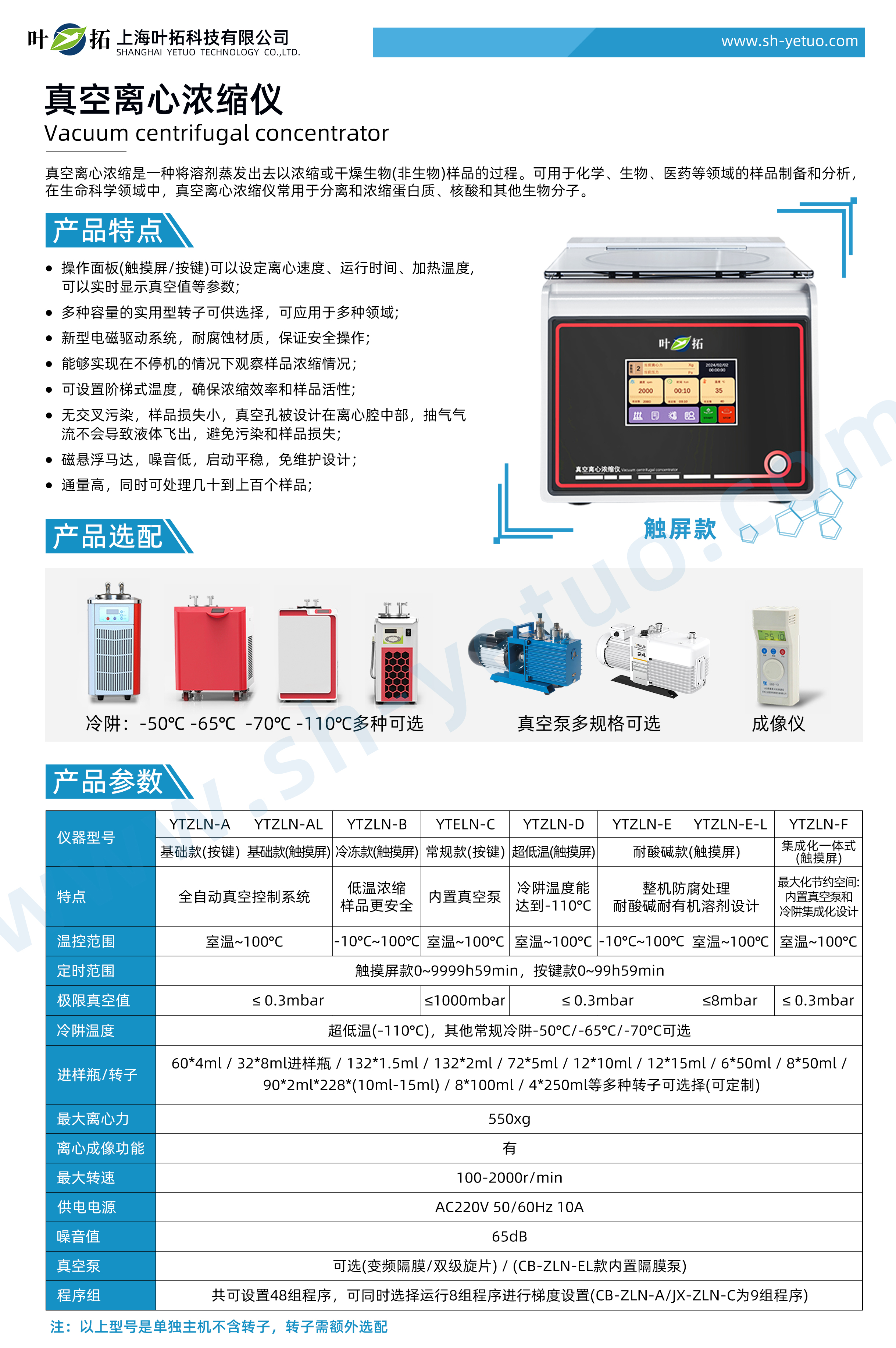

Yetuo YTZLN-F Vacuum Centrifugal Concentrator
Model: YTZLN-F
Product Overview:
Vacuum centrifugal concentration is a process of evaporating solvents to concentrate or dry biological (non biological) samples. It can be used for sample preparation and analysis in fields such as chemistry, biology, and medicine. In the field of life sciences, vacuum centrifuge concentrators are commonly used for separating and concentrating proteins, nucleic acids, and other biomolecules.
Product Features of Yetuo YTZLN-F Vacuum Centrifugal Concentrator
The operation panel (touch screen/buttons) can set centrifugal speed, running time, heating temperature, and display parameters such as vacuum value in real time;
Practical rotors with multiple capacities are available for selection and can be applied in various fields;
New electromagnetic drive system, made of corrosion-resistant materials, ensuring safe operation;
● Able to observe sample concentration without stopping the machine;
● Stepwise temperature can be set to ensure concentration efficiency and sample activity;
No cross contamination, minimal sample loss. The vacuum hole is designed in the middle of the centrifuge chamber, and the exhaust airflow will not cause liquid to fly out, avoiding contamination and sample loss;
Magnetic levitation motor, low noise, smooth start, maintenance free design;
High throughput, capable of processing tens to hundreds of samples simultaneously;
