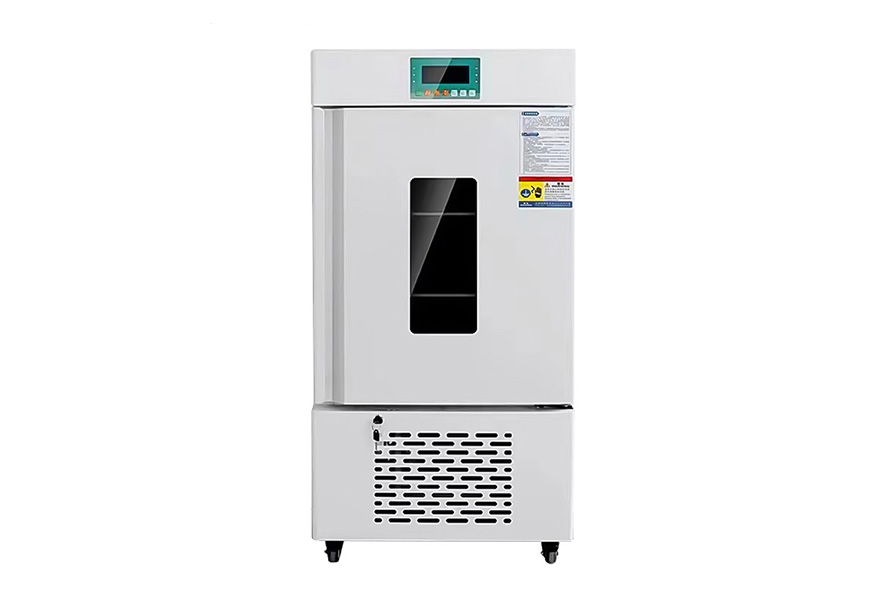

The Shanghai Yetuo Artificial Climate Incubator is an integrated environmental simulation equipment designed for agricultural and forestry breeding, biopharmaceuticals, environmental testing, and microbial research. It relies on a self-developed multi loop PID intelligent control system to synchronously control the three core climate factors of temperature, humidity, and light. It can freely edit the day night cycle program and replicate various natural environments such as tropical, temperate, alpine, and arid regions. It is an indispensable domestic basic instrument for laboratory standardized cultivation and aging detection, covering small desktop to large capacity vertical full volume models, and is equipped with differentiated configurations such as LED full spectrum light sources and intelligent cloud monitoring to meet the research needs of multiple industries.
1、 Core operating principle, multi system collaborative replication of natural climate
The entire equipment consists of four modules: temperature control, constant humidity, light cycle, and intelligent electronic control, which operate in a coordinated manner and rely on closed-loop sensing feedback to achieve stable and balanced environment.
The temperature control system adopts imported silent compressor units combined with PTC auxiliary heating, and the ambient refrigerant ensures long-term continuous operation. The global circulation air duct inside the box is designed to separate temperature stratification, with two independent temperature control intervals for no light and light, matching the different cultivation needs of plants and microorganisms; The humidity is adjusted in both directions through ultrasonic atomization humidification and condensation humidification. The low-temperature mode automatically locks the humidification function to avoid frosting and water accumulation in the inner container. The humidity fluctuation is controlled within a very small range to prevent mold growth and dehydration imbalance of the sample.
The lighting unit is divided into two schemes: top mounted and side mounted full spectrum LED. The lighting intensity can be infinitely adjusted, and the light period can be set separately to simulate the gradual lighting of sunrise and sunset, and to adhere to the photosynthesis law of the compound; The core controller is equipped with a PID operation program, supporting 30 segmented timing programming. Each segment can customize temperature and humidity, lighting, and operating time, automatically switching between daylight conditions without the need for manual parameter adjustment.
The box adopts an integral foam insulation layer, and the mirror stainless steel arc inner liner has no cleaning dead corners. The magnetic suction sealing door is matched with a double-layer hollow observation window, which can lock the internal temperature and humidity, and can directly observe the growth status of the sample without opening the door.
2、 Product core differentiation advantages
1. Domestic stable program control system, experiments can be repeated
Different from a simple lighting box, the Yetuo climate box can fully simulate the temperature difference between day and night, long and short sunshine, and alternating dry and wet environments throughout the four seasons. All parameter programs can be stored and retrieved, and the same batch of experimental environments are unified, reducing the interference of external seasons and weather on experimental data and ensuring that scientific research results can be compared and reproduced.
2. Clean and easy to maintain structural design
The inner circular arc has no splicing gaps, and the detachable layered shelf makes it easy to wipe off sample residues and water stains; It can be equipped with built-in ultraviolet killing jun module to disinfection and sterilization the inner cavity before and after cultivation to avoid contamination of tissue vaccine and strain by miscellaneous bacteria and meet the basic requirements of sterile cultivation.
3. Multiple AN full protection, 24/7 unmanned operation
Equipped with an independent temperature limiting sound and light alarm system, it automatically cuts off heating/cooling when the temperature exceeds the preset threshold, preventing high-temperature burns to samples and low-temperature freezing damage to cultivation materials; The water shortage protection and overload power-off protection are synchronously matched, and the laboratory can operate continuously at night and on holidays without the need for dedicated personnel supervision.
4. Intelligent expansion configuration, adapted to modern laboratories
The high-end model is equipped with a 7-inch color touch screen, which supports remote viewing and modification of running programs through mobile apps. The running data is synchronized and uploaded to the cloud platform, and can be connected to external printers and RS485 data interfaces to meet the data archiving and traceability needs of universities and third-party testing institutions; Optional carbon dioxide enrichment module for photosynthetic physiology and cell closed culture experiments.
5. Layered product matrix, covering the entire scenario budget
Small 100L and 150L models are suitable for basic teaching in universities, with a small amount of seeds sprouting; 350L-600L medium-sized model adaptation research institute breeding and tissue culture; The upgraded high-capacity vertical equipment is aimed at agricultural enterprises for batch seedling cultivation and material aging batch testing. The LED energy-saving light source significantly reduces long-term electricity costs.
3、 Typical application scenarios in all fields
1. Research on Agricultural and Forestry Seed Industry and Plant Physiology
This is the core usage scenario of the climate box. Seed germination and seedling cultivation of various crops, flowers, and medicinal herbs, simulating low-temperature vernalization, drought, and high-temperature stress to carry out stress resistant breeding experiments; Aseptic tissue culture of plant tissues, observation of seedling growth, and optimization of seedling survival rate by regulating light spectrum and humidity; Insects and small model organisms were raised at constant temperature and humidity to complete growth cycle, pharmacological and toxicological observation experiments.
2. Microbiology, Medicine, and Health Prevention
Cultivation of fine Jun, mold, and probiotics at constant temperature and humidity; Preservation of bacterial strains and screening of fermentation conditions in pharmaceutical enterprises; Five day biochemical oxygen demand (BOD) measurement of water quality in disease control and food testing laboratories, ensuring uniform biochemical reaction standards in a constant temperature and humidity environment; Stability test of medicinal herbs, simulating different temperature and humidity environments to test the rate of mold growth and degradation of active ingredients.
3. Environmental testing and material aging testing
Enrichment and cultivation of microorganisms in water and soil in the laboratory environment; Weather resistance and aging tests for wood, paper, plastic, and packaging building materials, simulating high-temperature and high humidity environments to accelerate material aging and quickly evaluate product service life; Stability observation of cosmetics and daily chemical raw materials.
4. Basic teaching in teaching laboratory
Teaching and practical training for biology, agriculture, and environmental majors in universities, visually demonstrating the effects of light, temperature, and humidity on biological growth, standardizing the environment to reduce classroom experimental errors, and supporting simple operating procedures. Students can quickly and independently design control experiments.
4、 Product positioning summary
The Shanghai Yetuo Artificial Climate Incubator breaks the limitations of natural environment on scientific research, concentrating the complex and varied outdoor climate in a closed box. With high cost-effectiveness and fully independent and controllable domestic technology, it meets the needs of basic teaching, in-depth scientific research, and pilot batch experiments. Compared to imported equipment, it has a shorter delivery cycle and convenient supply of after-sales accessories. From seed germination, strain cultivation to material weather resistance testing, it meets the needs of multiple industries for constant temperature and humidity light testing in one stop. It is the mainstream choice for laboratory environment simulation equipment in China.
