Product Parameters:
Product model: DHP-9052
Display mode: dual color digital display
Temperature control range: RT+5~75 ° C
Temperature resolution: 0.1 ° C
Temperature fluctuation: ± 0.5 ° C
Temperature uniformity: ± 1.5 ° C (at 37 ° C)
Standard load carrier: 2 pieces
Timing range: 0-9999 minutes
Dimensions D × W × H: 510x630x580 (mm)
Working dimensions D × W × H: 360x360x420 (mm)
Capacity: 54L
Inner liner material: Standard 201 stainless steel inner liner (optional 304, 316 stainless steel)
Mesh size D × W: 335x340 (mm)
Mesh type/material: 201 stainless steel fence
Partition load-bearing capacity: 15kg
Outer packaging dimensions D × W × H: 640x720x660 (mm)
Net weight/gross weight: 41KG/45KG
Power supply voltage: 220V 50HZ
Input power: 300W
Note: The above models all have temperature self-tuning, over temperature alarm/over temperature self limit, and screen lock functions
- Product Details
- Product manual

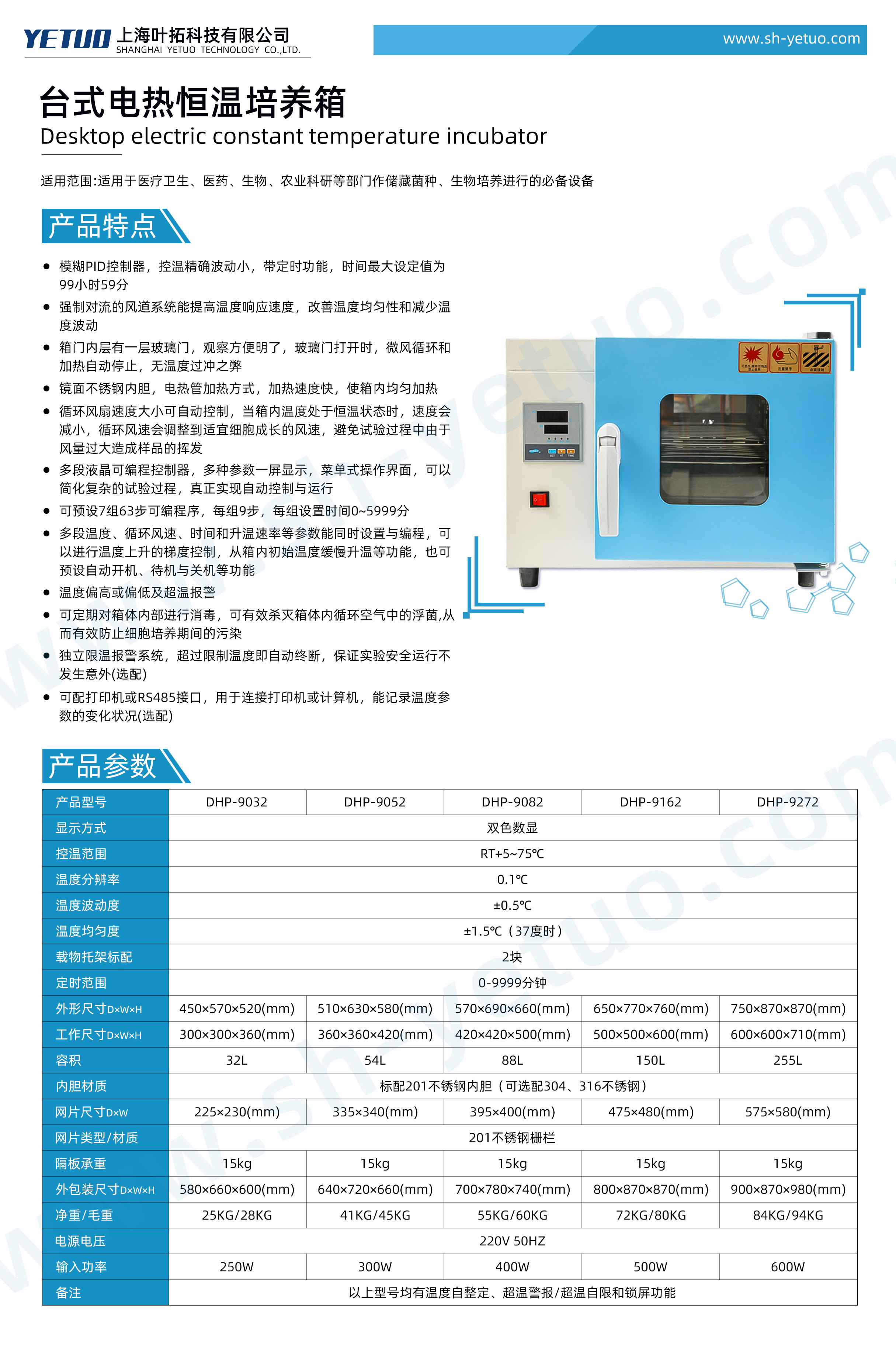

Yetuo DHP-9052 desktop electric constant temperature incubator
Model: DHP-9052
Product Overview:
Scope of application: Essential equipment for storing bacterial strains and conducting biological cultivation in medical and health, pharmaceutical, biological, agricultural research and other departments
Product features of Yetuo DHP-9052 desktop electric constant temperature incubator
Fuzzy PID controller, precise temperature control with small fluctuations, equipped with timing function, with a maximum set time of 99 hours and 59 minutes
The forced convection duct system can improve temperature response speed, enhance temperature uniformity, and reduce temperature fluctuations
The inner layer of the box door has a glass door, which is easy to observe and clear. When the glass door is opened, the breeze circulation and heating automatically stop, without the problem of temperature overshoot
Mirror stainless steel inner liner, electric heating tube heating method, fast heating speed, ensuring uniform heating inside the box
The speed of the circulating fan can be automatically controlled. When the temperature inside the box is at a constant temperature, the speed will decrease, and the circulating wind speed will be adjusted to a wind speed suitable for cell growth, avoiding sample volatilization caused by excessive air volume during the experiment
● Multi segment LCD programmable controller, multiple parameters displayed on one screen, menu style operation interface, can simplify complex experimental processes, truly achieve automatic control and operation
7 groups of 63 programmable steps can be pre-set, with 9 steps per group and a set time of 0-5999 minutes per group
Multiple parameters such as humidity, circulating wind speed, time, and heating rate can be set and programmed simultaneously, allowing for gradient control of temperature rise, slow heating from the initial temperature inside the box, and preset functions such as automatic startup, standby, and shutdown
● High or low temperature and over temperature alarm
Regular disinfection of the interior of the box can effectively kill floating bacteria in the circulating air inside the box, thereby preventing contamination during cell culture
● Independent temperature limit alarm system, which automatically terminates when the temperature limit is exceeded, ensuring safe operation of the experiment without accidents (optional)
● Can be equipped with a printer or RS485 interface for connecting to a printer or computer, capable of recording changes in temperature parameters (optional)
