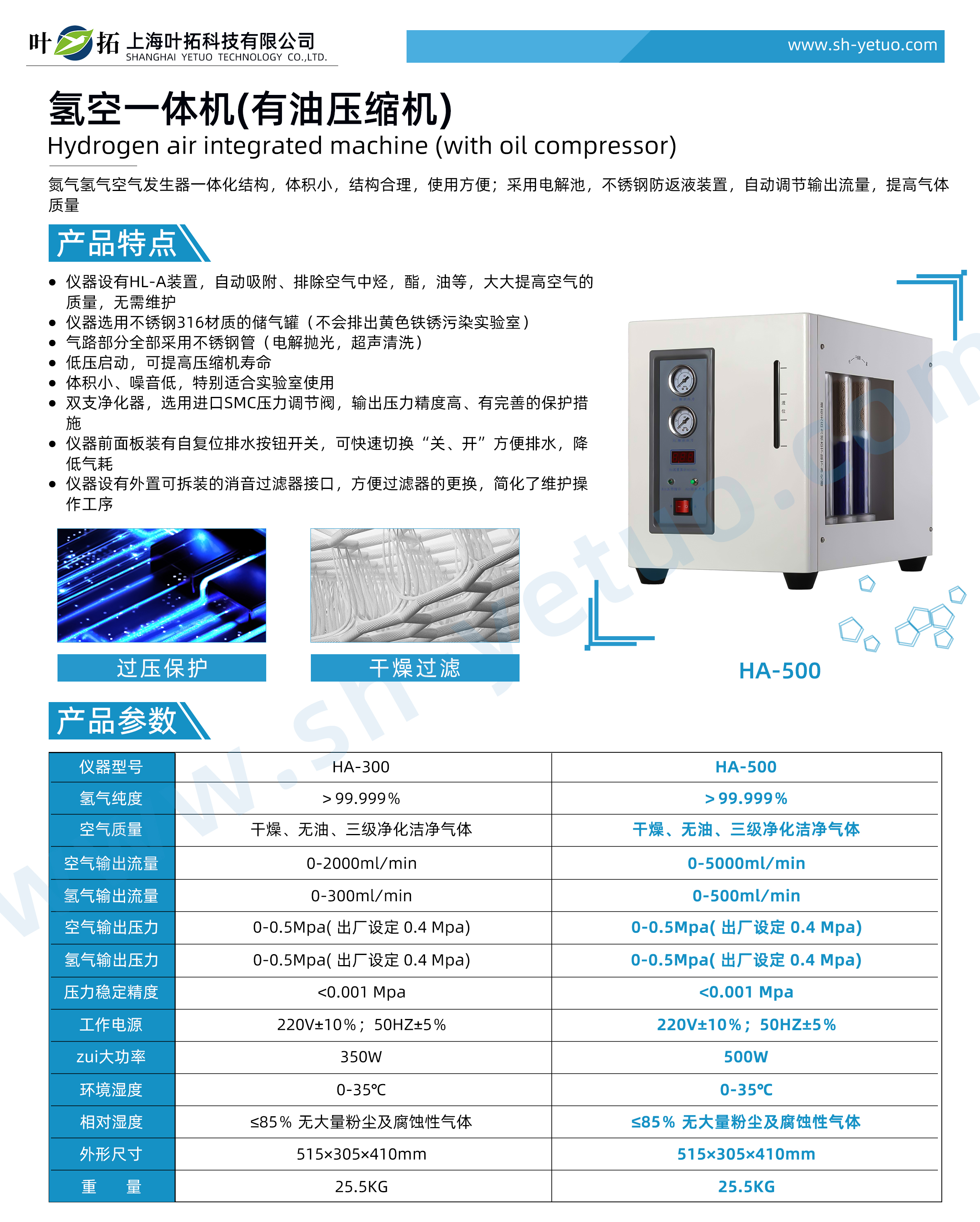

Ye Tuo HA-500 hydrogen air integrated machine

Product parameters:

Instrument model: HA-500

Hydrogen purity:>99.999%

Air quality: dry, oil-free, three-level purified clean gas

Air output flow rate: 0-5000ml/min

Hydrogen output flow rate: 0-500ml/min

Air output pressure: 0-0.5Mpa (factory set at 0.4 Mpa)

Hydrogen output pressure: 0-0.5Mpa (factory set at 0.4 Mpa)

Pressure stability accuracy:<0.001 Mpa

Working power supply: 220V ± 10%; 50Hz ± 5%

Maximum power: 500W

Environmental conditions: Environmental humidity: 0-35 ℃, relative humidity: ≤ 85%, without a large amount of dust and corrosive gases

External dimensions: 515 * 305 * 410mm

Weight: 25.5KG


Product Quotation:Inquiry now

Ye Tuo HA-500 hydrogen air integrated machine

Model: HA-500

Product Overview: The integrated structure of the nitrogen hydrogen air generator is small in size, reasonable in structure, and convenient to use; Using an electrolytic cell and stainless steel anti backflow device, the output flow rate is automatically adjusted to improve gas quality.

Features of Ye Tuo HA-500 Hydrogen Air Integrated Machine

The instrument is equipped with an HL-A device, which automatically adsorbs and removes hydrocarbons, esters, oils, etc. from the air, greatly improving the quality of the air without maintenance.

The instrument uses a stainless steel 316 material gas storage tank (to prevent the discharge of yellow rust pollution in the laboratory).

The gas path is entirely made of stainless steel tubes (electrolytic polishing, ultrasonic cleaning).

Low pressure start-up effectively improves the lifespan of the compressor.

Small size and low noise, especially suitable for laboratory use.

Double purifier, using imported SMC pressure regulating valve, with high output pressure accuracy and complete protection measures.

The front panel of the instrument is equipped with a self resetting drainage button switch, which can quickly switch between "off" and "on" to facilitate drainage and reduce air consumption.

The instrument is equipped with an external detachable silencing filter interface, which facilitates the replacement of filters and simplifies maintenance operations.
