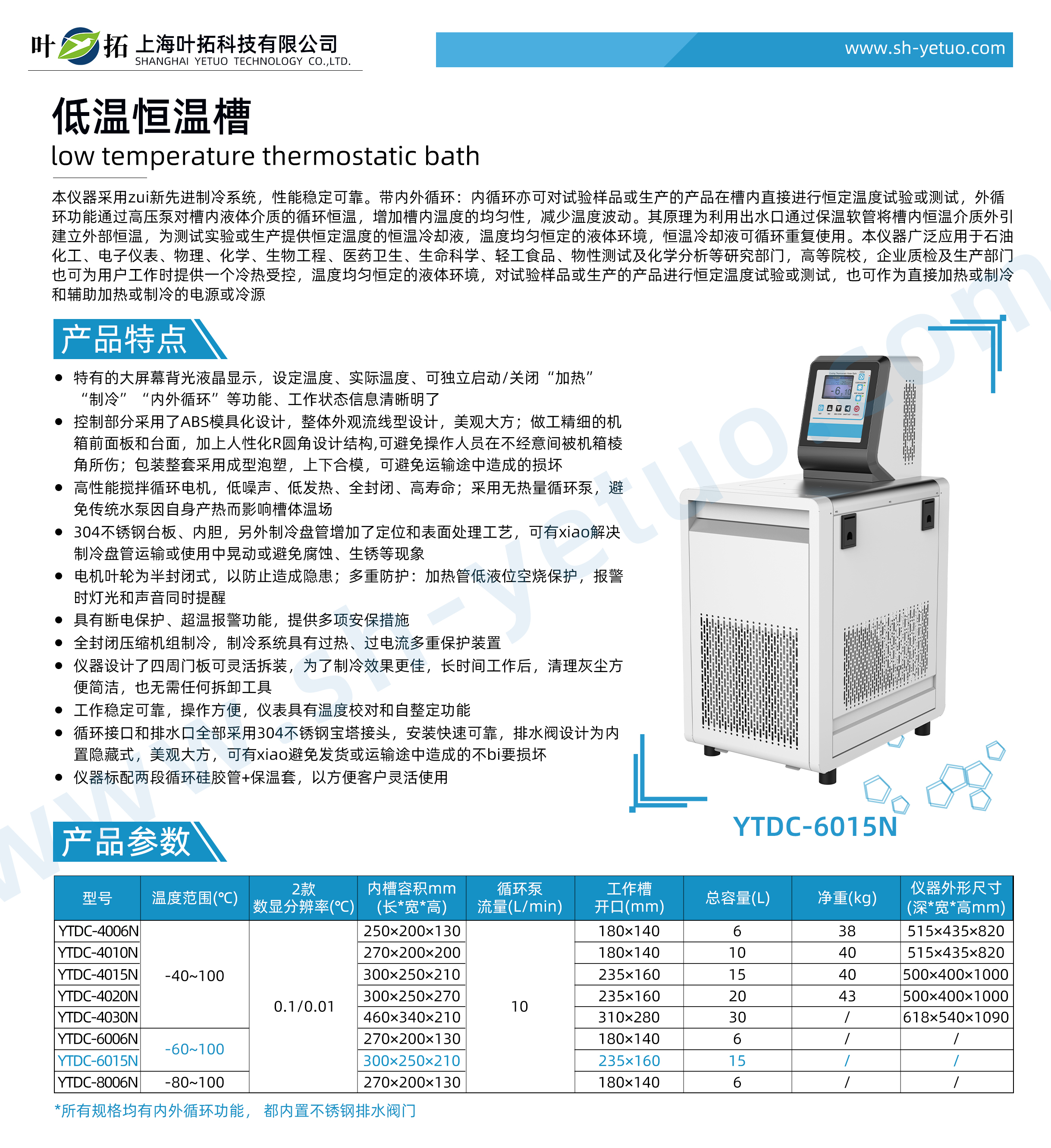

Yetuo YTDC-6015N Low Temperature Constant Temperature Bath Detailed Parameters
Model: YTDC-6015N
Temperature range (° C): -60~100
2 digital display resolutions (° C): 0.1/0.01
Inner slot capacity mm (length * width * height): 300x250x210
Circulating pump flow rate (L/min): 10
Working slot opening (mm): 235x160
Total capacity (L): 15
- Product Details
- Product manual
Product features of YTDC-6015N low-temperature constant temperature bath from Yetuo
● Unique large screen Mu backlit LCD display, set temperature, actual temperature, can independently start/stop functions such as "heating", "cooling", "internal and external circulation", and clear working status information
The control part adopts ABS mold design, with a streamlined overall appearance that is beautiful and elegant; The finely crafted front panel and tabletop of the chassis, coupled with a user-friendly R-rounded design structure, can prevent operators from being accidentally injured by the corners of the chassis; The entire packaging is made of molded foam plastic, with upper and lower molds that can avoid damage during transportation
High performance mixing and circulation motor, low noise, low heat generation, fully enclosed, high lifespan, using a non heat circulation pump to avoid the impact of traditional water pumps on the tank temperature field due to their own heat generation
304 stainless steel platform and inner liner, in addition, the refrigeration coil has added positioning and surface treatment processes, which can solve the problem of shaking or avoiding corrosion, rust and other phenomena during transportation or use of the refrigeration coil
The motor impeller is semi enclosed to prevent potential hazards, with multiple protections: low liquid level air burning protection for the heating tube, and simultaneous warning of light and sound when an alarm is triggered
Equipped with power-off protection and over temperature alarm functions, providing multiple security measures
Fully enclosed compressor unit refrigeration, with multiple protection devices for overheating and overcurrent in the refrigeration system
The instrument is designed with four door panels that can be flexibly disassembled and reassembled for better cooling effect. After long-term operation, cleaning dust is convenient and simple, and no disassembly tools are needed
● Stable and reliable operation, easy to operate, and the instrument has temperature calibration and self-tuning functions
The circulation interface and drainage outlet are all made of 304 stainless steel pagoda joints, which are installed quickly and reliably. The drainage valve is designed as a built-in hidden type, which is beautiful and elegant, and can avoid damage during shipment or transportation
The instrument comes standard with two sections of circulating silicone tubing and insulation cover for customers to use flexibly
