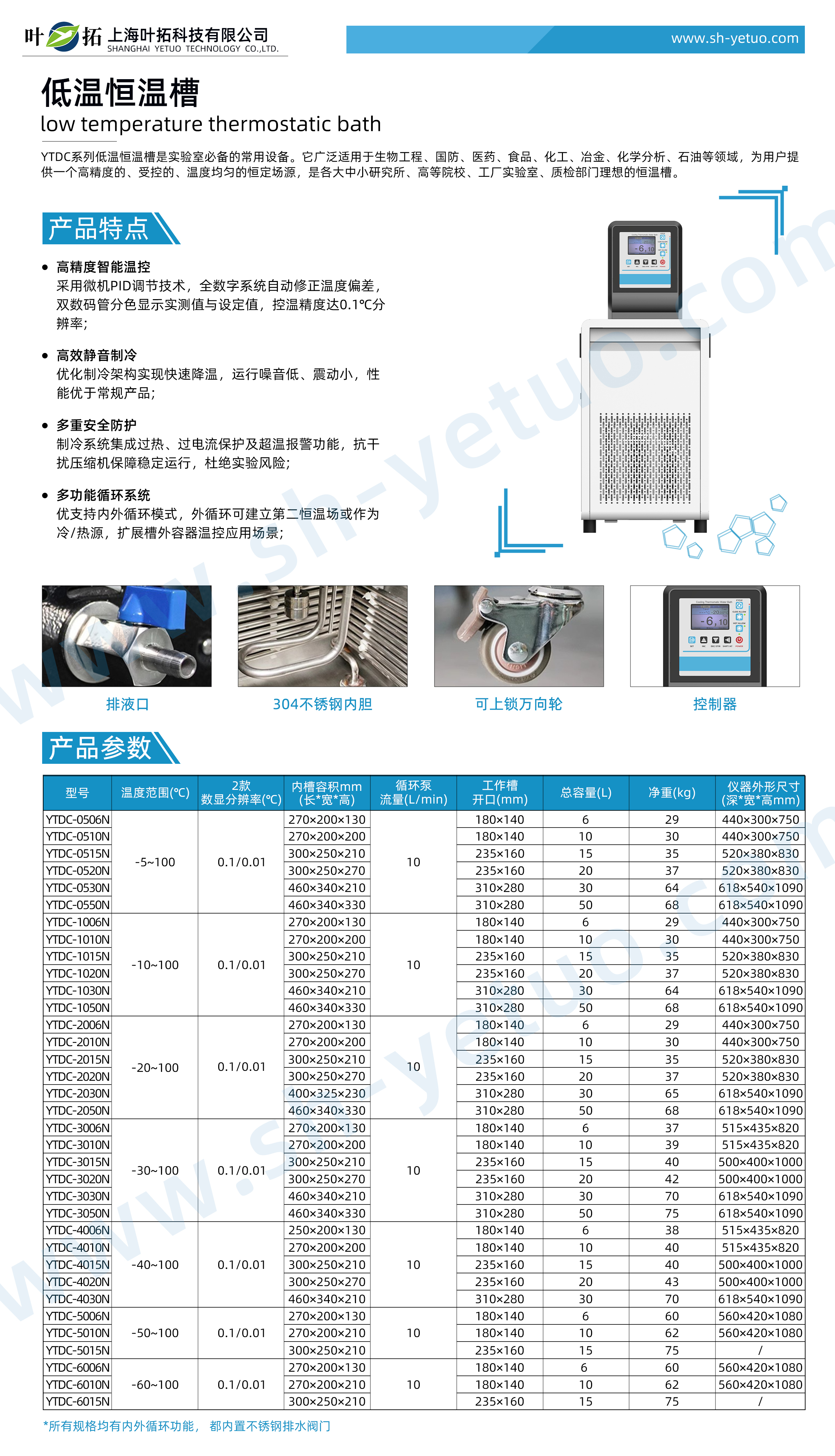

Ye Tuo YTDC-1015N low-temperature constant temperature bath

Product parameters:

Model: YTDC-1015N

Temperature range (℃): -10~150

Temperature fluctuation (℃): ± 0.02

Digital resolution (m): 0.01

Head (m): 5

Circulating pump flow rate (L/min): 0-20

Work slot volume (mm) (length * width * depth): 300 x 250 x 200

Work slot opening (mm): 235 x 180

Refrigeration capacity: 760

External dimensions (length * width * height mm): 450 x 350 x 850

*If you need to order temperature control accuracy of 0.01 ℃, 0.001 ℃, please specify


Product Quotation:Inquiry now

Ye Tuo YTDC-1015N low-temperature constant temperature bath


Model: YTDC-1015N


Product Overview:


The low-temperature constant temperature bath adopts environmentally friendly fluorine free refrigeration, and the main components are all imported products, with stable and reliable performance. Widely used in research departments such as petroleum, chemical industry, electronic instruments, physics, chemistry, bioengineering, life sciences, light industry and food, physical property testing and chemical analysis, as well as in quality inspection and production departments of higher education institutions, enterprises, etc., it provides users with a controlled liquid environment with uniform and constant temperature during work. It can conduct constant temperature tests or tests on test samples or products, and can also be used as a heat or cold source for direct heating or cooling and auxiliary heating or cooling.

Features of YTDC-1015N low-temperature constant temperature bath products from Ye Tuo


Fully enclosed imported compressor, with low noise in the refrigeration system.


The system adopts internationally advanced fluorine free and environmentally friendly refrigeration technology.


4.3 inch LCD display screen, displaying parameters such as temperature, time, cooling power, etc.


● Timed working time function, stop working after completion.


Customers can set that the parameters remain unchanged after power failure, and the instrument defaults to working when powered on.


Temperature fluctuation: ± 0.01 ℃~± 0.02 ° C.


The internal and external circulation can be switched, and the pump flow rate is controllable, suitable for various experiments with different needs.


The refrigeration compressor has automatic protection functions such as overheating and overload, and is equipped with over temperature protection to automatically cut off the electric heating system, ensuring the safety of the instrument.
