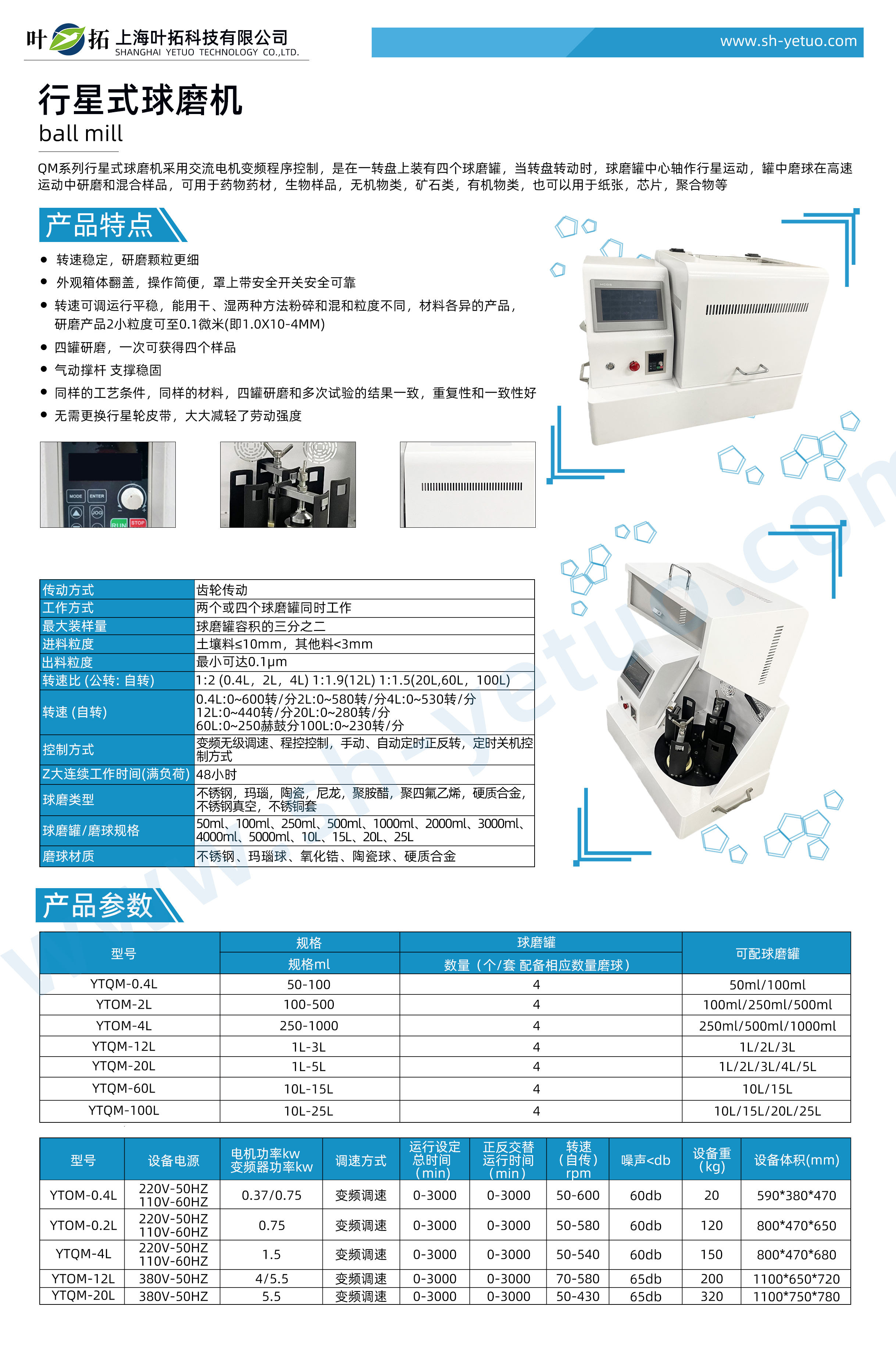

Ye Tuo YTQM-0.4L planetary ball mill

Model: YTQM-0.4L


Specification: 0.4L


Ball milling tank: 4


Can be equipped with ball milling tank: 50ml/100ml


Equipment power supply: 220V-50HZ/110V-60HZ


Motor power: 0.37/0.75kw


Speed regulation method: variable frequency speed regulation


Total time set for operation: 0-3000min


Forward and backward alternating running time: 0-3000min


Speed (self rotation): 50-600rpm


Noise<db: 60db


Equipment weight: 20kg


Equipment volume: 590 * 380 * 470 (mm)


Transmission method: gear transmission


Working mode: Two or four ball milling tanks working simultaneously


Maximum sample size: two-thirds of the volume of the ball milling tank


Feed particle size: soil material ≤ 10mm, other materials<3mm


Discharge particle size: minimum up to 0.1um


Speed ratio (revolution: rotation): 1:2 (0.4L, 2L, 4L)


Control method: variable frequency stepless speed regulation, program control, manual and automatic

 timing for forward and reverse rotation, and timed shutdown


Z continuous working time (full load): 48 hours

Product Quotation:Inquiry now

Product Usage


The QM series planetary ball mill is controlled by AC motor frequency conversion program. It is equipped with four ball milling tanks on a turntable. When the turntable rotates, the central axis of the ball milling tank moves in a planetary manner. The ball in the tank grinds and mixes samples in a high-speed motion. It can be used for medicine, biological samples, inorganic compound substances, minerals, organic substances, as well as paper, chips, polymers, etc.


Product Features


1.Stable speed and finer grinding particles


2. The appearance of the box is flipped, easy to operate, and the cover is equipped with a safety switch for safety and reliability


3. Adjustable speed and stable operation, capable of grinding and mixing products with different particle sizes and materials using both dry and wet methods. Grinding products with a small particle size of up to 0.1 micrometers (i.e. 1.0X10-4MM)


4. Four cans of grinding can obtain four samples at a time


5. The pneumatic support rod is firmly supported


6. The same process conditions, same materials, four cans of grinding, and multiple tests have consistent results, with good repeatability and consistency


7. No need to replace the planetary pulley belt, greatly reducing labor intensity
