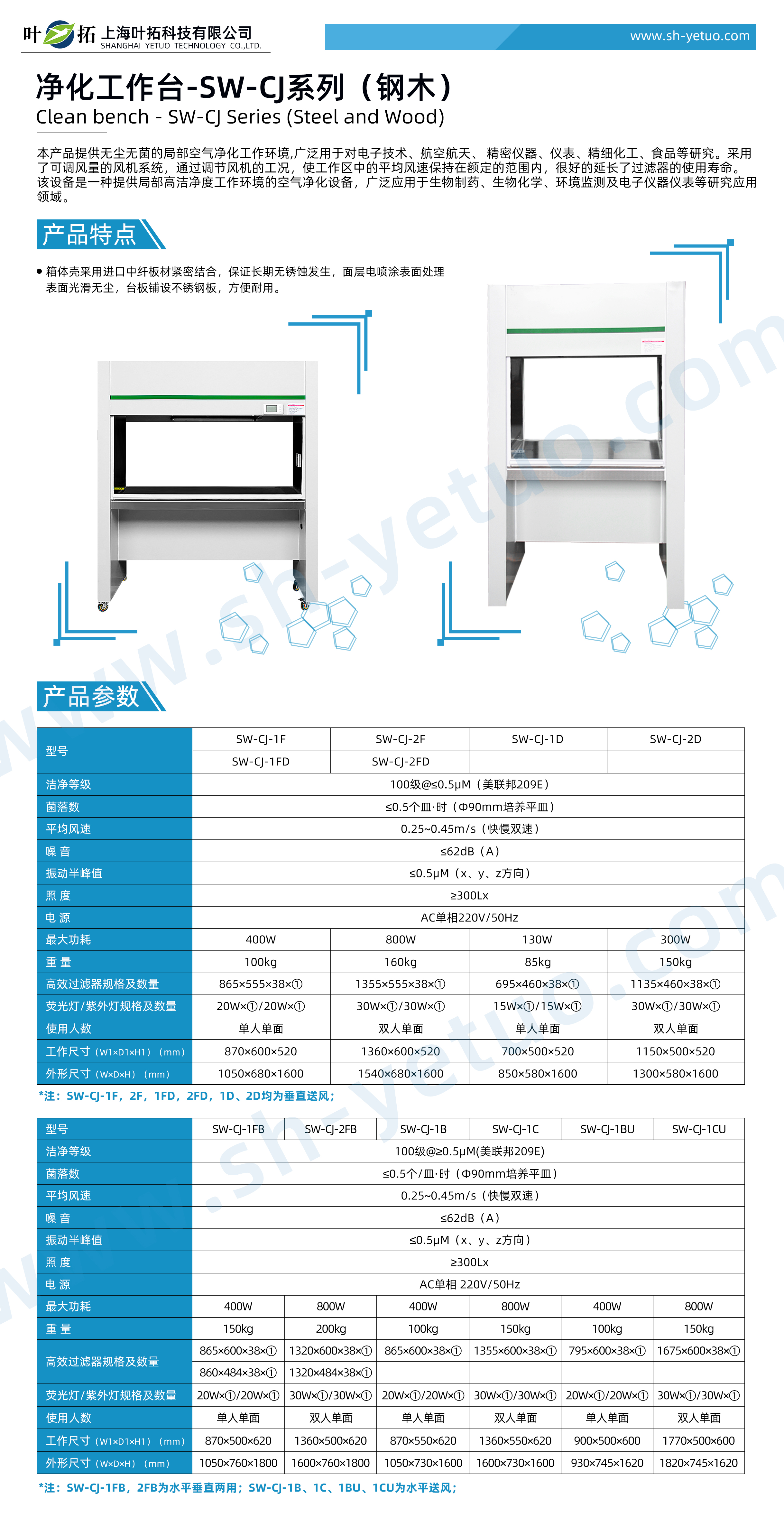

Yetuo sw-cj-1f super clean workbench

Model: sw-cj-1f


Cleanliness level: 100 @ ≥ 0.5 μ M (209E)


Colony count: ≤ 0.5 / dish · hour( Φ 90mm plate)


Average wind speed: 0.25 ~ 0.45m/s


Noise: ≤ 62db (a)


Half peak value of vibration: ≤ 0.5 μ M (x, y, z direction)


Illuminance: ≥ 300lx


Power supply: AC single-phase 220V / 50Hz


Maximum power: 400W


Weight: 100kg


Working area size: W1 × D1 × H1 870×600×520㎜


Overall dimension: W × D × H 11050×680×1600㎜


Applicable number: Single person single sided


Specification and quantity of high efficiency filter: 865 × five hundred and fifty-five × thirty-eight × ①


Specification and quantity of fluorescent lamp / UV lamp: 20W × ①/20W × ①


Product Quotation:Inquiry now

Product description


The air is pressed into the static pressure box through the top / rear primary air filter and low-noise centrifugal fan, and evenly blown out on the upper side through the high-efficiency air filter to form a horizontal / vertical air curtain with high cleanliness, remove the original natural air in the working area, and reach the ideal high cleanliness space five minutes after startup. The adjustable fan is used to adjust the air volume at two speeds, and the light touch switch is used to adjust the voltage to ensure that the wind speed in the working area is always in an ideal state.


Product features


The box shell is closely combined with imported medium fiber plate to ensure that there is no corrosion for a long time. The surface is treated by electric spraying, and the surface is smooth and dust-free. The platen is laid with stainless steel plate, which is convenient and durable.
