Product Parameters:
Product model: YT-S212-10L
Capacity: 10L
Mezzanine volume: 3L
Model: Stainless steel frame type
Motor power: 140W
Mixing speed: 0-500RPM
Mixing shaft diameter: φ 17mm
Mixing method: double-layer slurry/anchor type
Mixing material: Stainless steel with PTFE coating
Packing and sealing: PTFE mechanical ceramic
Controller: Variable frequency speed regulation
Cauldron cover diameter: φ 265mm
Temperature measuring port: φ 35 flange port
Mixing port: φ 50 flange port
Condensation reflux port: 50 # ball milling port
Constant pressure funnel mouth: 40 # standard mouth
Solid feeding port: φ 80 flange port
Release valve: 34 # standard port
Circulating opening of kettle body: φ 35 flange mouth
Power supply: 220V
Bottom seal: Glass PTFE composite
Operating temperature range: -80~200 ° C
- Product Details
- Product manual

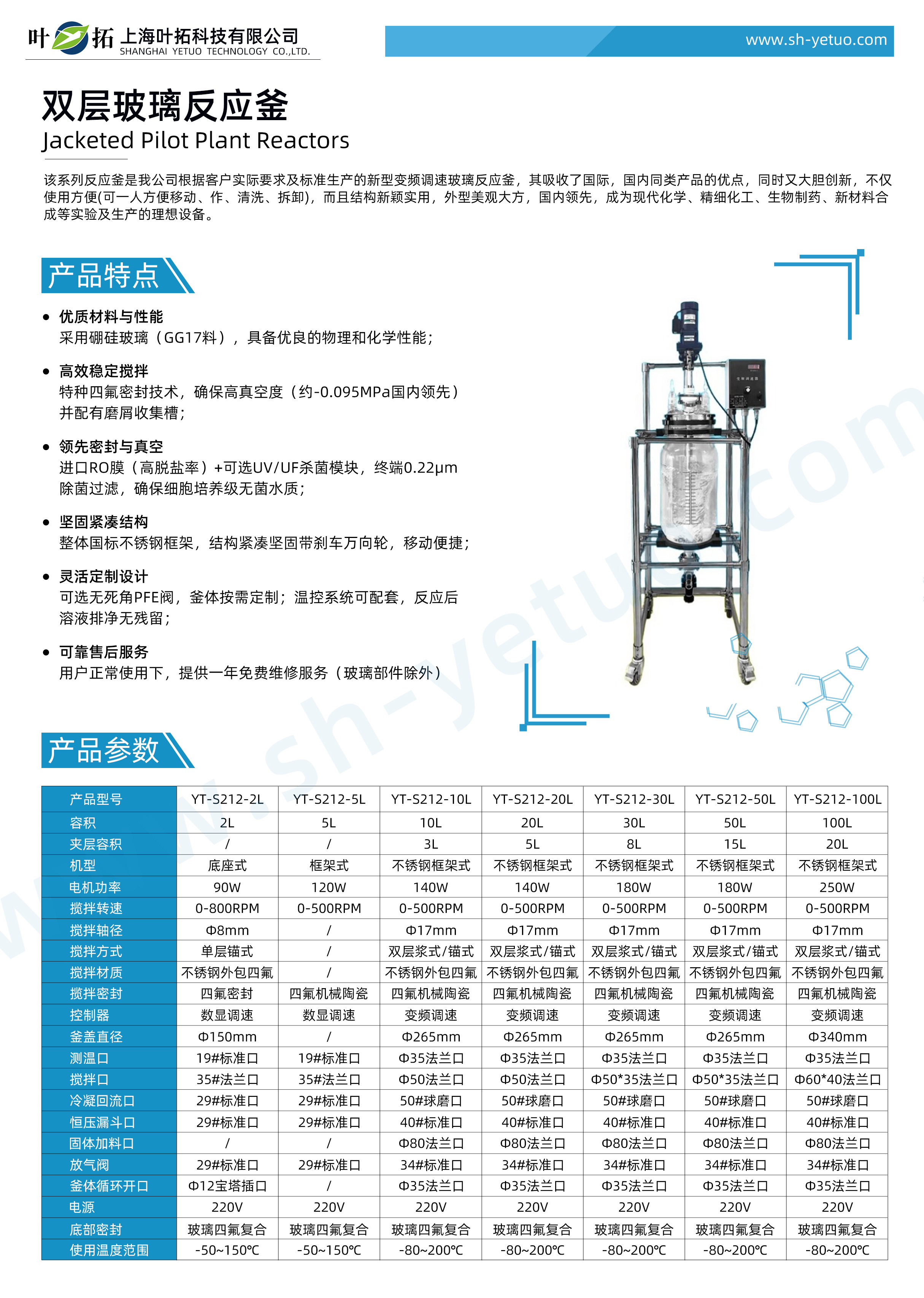

Yetuo YT-S212-10L double-layer glass reactor
Model: YT-S212-10L
Product Overview:
This series of reaction vessels is a new type of variable frequency speed regulating glass reaction vessel produced by our company according to the actual requirements and standards of customers, which has absorbed international standards. The advantages of similar domestic products, as well as bold innovation, not only make it easy to use (can be easily moved, operated, cleaned, and disassembled by one person), but also have a practical new structure and a beautiful and elegant appearance. It is leading in China and has become an ideal equipment for modern chemistry, fine chemicals, biopharmaceuticals, new material synthesis and other experiments and production.
Product features of Yetuo YT-S212-10L double-layer glass reaction kettle
● High quality materials and performance
Using borosilicate glass (GG17 material) with excellent physical and chemical properties;
● Efficient and stable mixing
Special PTFE sealing technology ensures high vacuum degree (about -0.095MPa, leading domestically) and is equipped with a debris collection tank;
Leading in sealing and vacuum technology
Imported RO membrane (high desalination rate)+optional UV/UF sterilization module, terminal 0.22um sterilization filtration, ensuring sterile water quality for cell culture;
● Sturdy and compact structure
The overall national standard stainless steel frame has a compact and sturdy structure with brake universal wheels, making it easy to move;
● Flexible customized design
Optional no dead angle PFE valve, customized kettle body according to needs; The temperature control system can be matched, and after the reaction, the solution is drained completely without residue;
● Reliable after-sales service
Under normal use, users are provided with one year of free repair service (excluding glass components)
