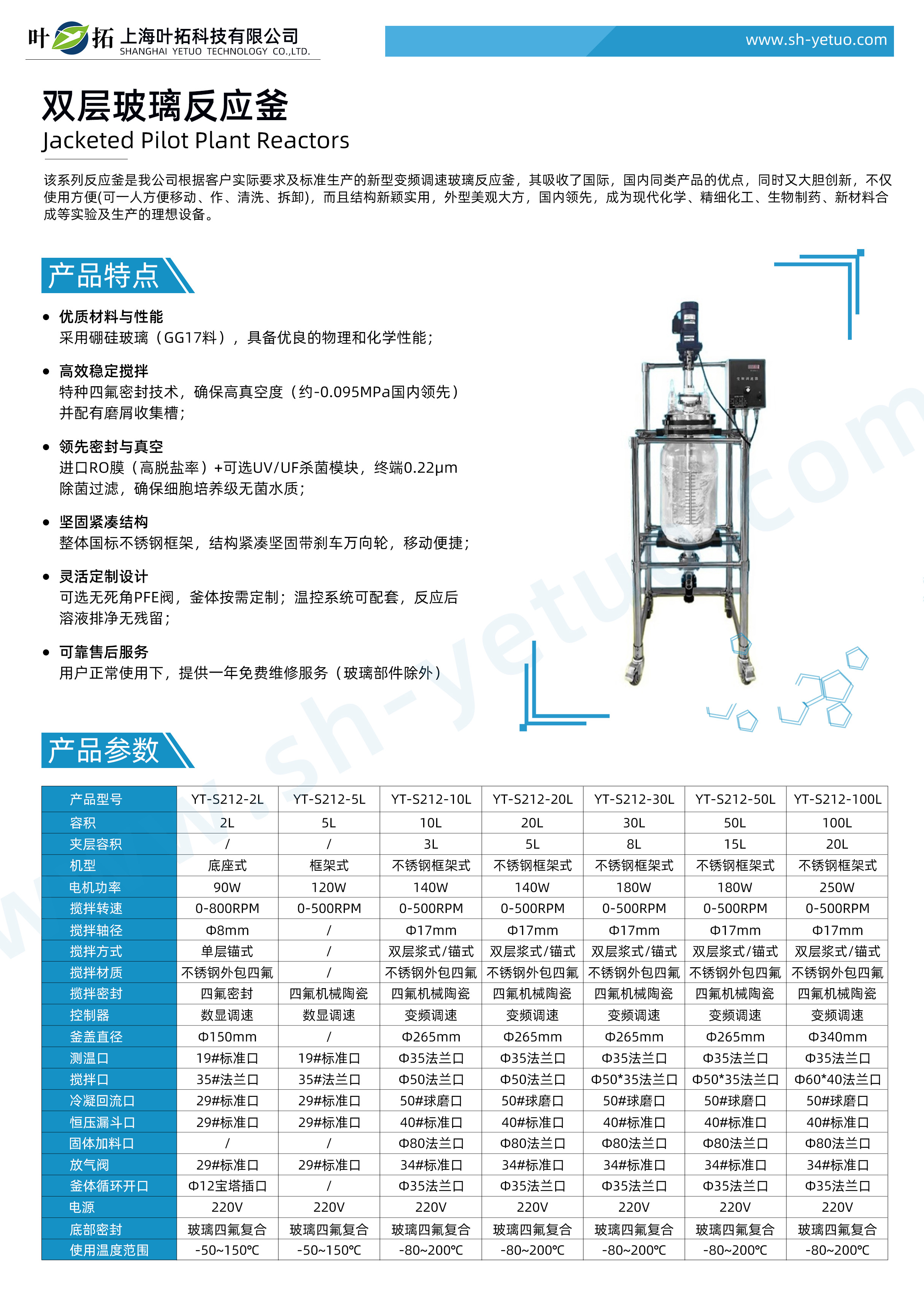

Yetuo YT-S212-5L double-layer glass reactor

Product Parameters:

Product model: YT-S212-5L

Capacity: 5L

Mezzanine volume:/

Model: Frame type

Motor power: 120W

Mixing speed: 0-500RPM

Mixing shaft diameter:/

Mixing method:/

Mixing material:/

Packing and sealing: PTFE mechanical ceramic

Controller: Digital Display Speed Control

Diameter of kettle lid:/

Temperature measuring port: 19 # standard port

Mixing port: 35 # flange port

Condensation reflux port: 29 # standard port

Constant pressure funnel mouth: 29 # standard mouth

Solid feeding port:/

Air release valve: 29 # standard port

Circulating opening of kettle body:/

Power supply: 220V

Bottom seal: Glass PTFE composite

Operating temperature range: -50~150 ° C


Product Quotation:Inquiry now

Yetuo YT-S212-5L double-layer glass reactor


Model: YT-S212-5L


Product Overview:


This series of reaction vessels is a new type of variable frequency speed regulating glass reaction vessel produced by our company according to the actual requirements and standards of customers, which has absorbed international standards. The advantages of similar domestic products, as well as bold innovation, not only make it easy to use (can be easily moved, operated, cleaned, and disassembled by one person), but also have a practical new structure and a beautiful and elegant appearance. It is leading in China and has become an ideal equipment for modern chemistry, fine chemicals, biopharmaceuticals, new material synthesis and other experiments and production.

Product features of Yetuo YT-S212-5L double-layer glass reaction kettle


● High quality materials and performance


Using borosilicate glass (GG17 material) with excellent physical and chemical properties;


● Efficient and stable mixing


Special PTFE sealing technology ensures high vacuum degree (about -0.095MPa, leading domestically) and is equipped with a debris collection tank;


Leading in sealing and vacuum technology


Imported RO membrane (high desalination rate)+optional UV/UF sterilization module, terminal 0.22um sterilization filtration, ensuring sterile water quality for cell culture;


● Sturdy and compact structure


The overall national standard stainless steel frame has a compact and sturdy structure with brake universal wheels, making it easy to move;


● Flexible customized design


Optional no dead angle PFE valve, customized kettle body according to needs; The temperature control system can be matched, and after the reaction, the solution is drained completely without residue;


● Reliable after-sales service


Under normal use, users are provided with one year of free repair service (excluding glass components)
