Product Parameters:
Model: FA25
Speed range: 10000-31000r/rnin
Processing capacity: 0.2-7000ml
Standard working head: HR500-25G
Input power: 500W
Output power: 320W
Speed display: Scale display
Speed regulation method: stepless speed regulation
Contact material material: 316
Entering the material section, the material of the shaft sleeve is PTFE
Applicable humidity: ≤ 120 ℃
Allowable ambient temperature: 5-40 ℃
Allowable relative humidity: 80%
Process type: Batch processing
Net weight of the host (excluding blade): 3kg
Power supply: 220V 50HZ
Host size (length x diameter): 275x Ø 65mm
Host packaging size: 470x340x205mm
Gross weight of the host: 3.7KG
Blade specifications:
Specification: 6G Specification: 0.2-10ml Viscosity: 100mpas S5316L
Specification: 8G Specification: 1-60ml Viscosity: 100mpas Material: S5316L
Specification: 10G Specification: 10-150ml Viscosity: 200mpas Material: S5316L
Specification: 18G Specification: 50-1500ml Viscosity: 3000mpas Material: S5316L, PTEE
Specification: 20G Specification: 50-1500ml Viscosity: 3000mpas Material: S5316L
Specification: 25G Specification: 100-500ml Viscosity: 5000mpas Material: S5316L, PTEE
Specification: 18F Specification: 50-1500ml Viscosity: 2000mpas Material: S5316L
Specification: 20F Specification: 50-1500ml Viscosity: 3000mpas Material: S5316L, PTEE
Specification: 25F Specification: 100-1500ml Viscosity: 3500mpas Material: S5316L, PTEE
- Product Details
- Product manual

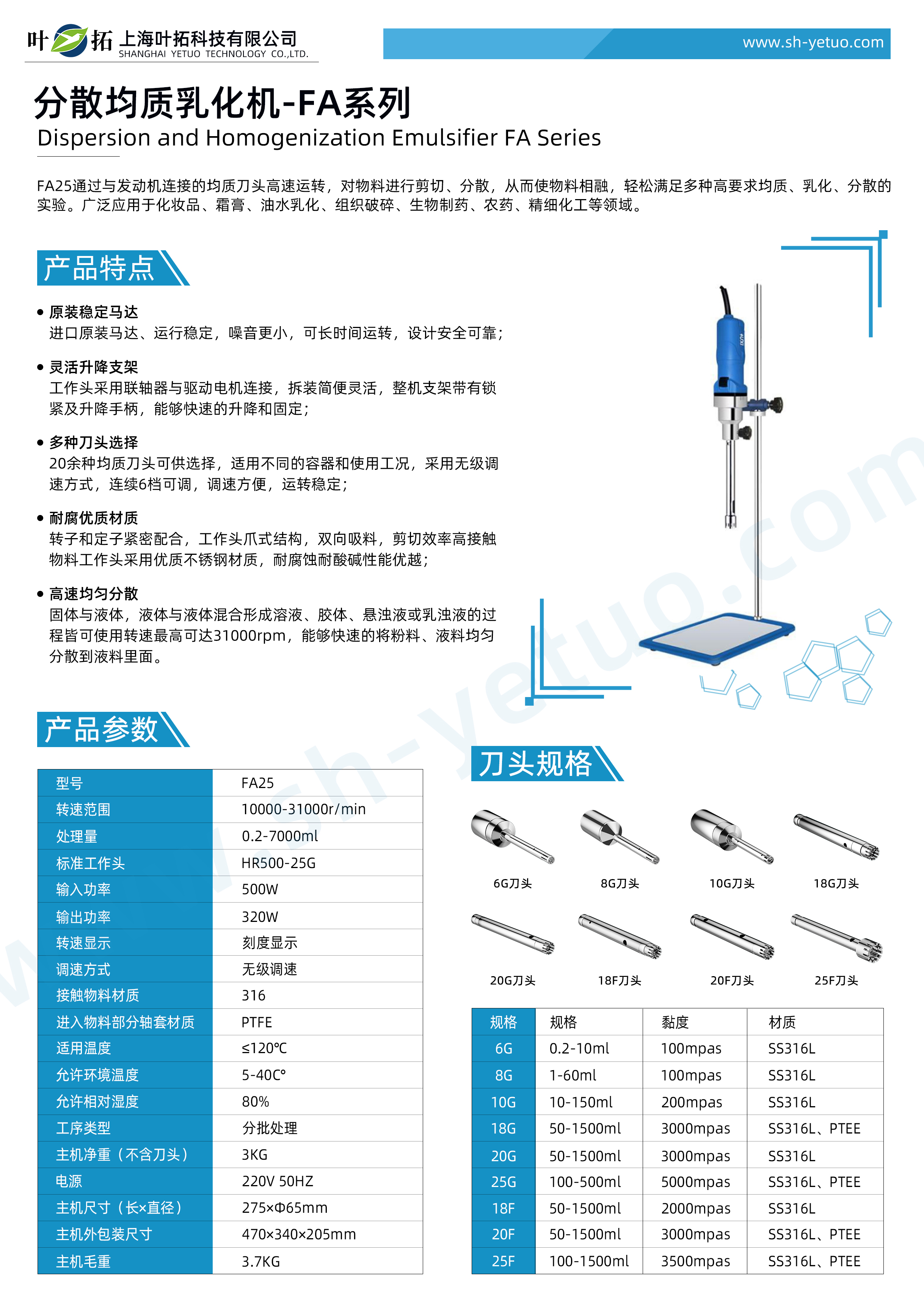

Yetuo FA25 Dispersion Homogenization Emulsifier
Model: FA25
Product Overview:
FA25 cuts and disperses materials at high speed through a homogenizer blade connected to the engine, allowing them to blend and easily meet various high requirements for homogenization, emulsification, and dispersion experiments. Widely used in cosmetics, cream, oil-water emulsification, tissue fragmentation, biopharmaceuticals, pesticides, fine chemicals and other fields.
Product Features of Yetuo FA25 Dispersion Homogenization Emulsifier
● Original stabilizing motor
Imported original motor, stable operation, low noise, can run for a long time, designed to be safe and reliable;
● Flexible lifting bracket
The working head is connected to the drive motor through a coupling, making it easy and flexible to disassemble. The entire machine bracket is equipped with a locking and lifting handle. Can quickly lift and fix;
● Multiple blade options
More than 20 types of homogeneous cutting heads are available for selection, suitable for different containers and operating conditions. It adopts a stepless speed regulation method, with 6 consecutive adjustable gears, ensuring stable operation;
● Corrosion resistant and high-quality materials
The rotor and stator are tightly matched, with a claw like structure for the working head, bi-directional suction, and high shear efficiency. The material contact working head is made of high-quality stainless steel material, which has excellent corrosion and acid alkali resistance;
● High speed uniform dispersion
The process of mixing solids and liquids, liquids and liquids to form solutions, colloids, suspensions or emulsions can all be carried out at a maximum speed of 31000rpm, which can quickly and uniformly disperse powders and liquids into the liquid.
