Product Parameters:
Model: JRJ300D-1
Operation method: rotary knob
Speed range: 200~11000r/min
Processing capacity: ≤ 40L
Input power: 510W
Output power: 300W
Dimensions: 250x320x720mm
Transmission size: 240x120x150mm
Work head configuration: 70mm in diameter
Rated torque: 0.96Nm
Stator configuration: 5mm, 20mm, 50mm ²
Speed control: infinite
Power supply: AC 220V 50HZ
- Product Details
- Product manual

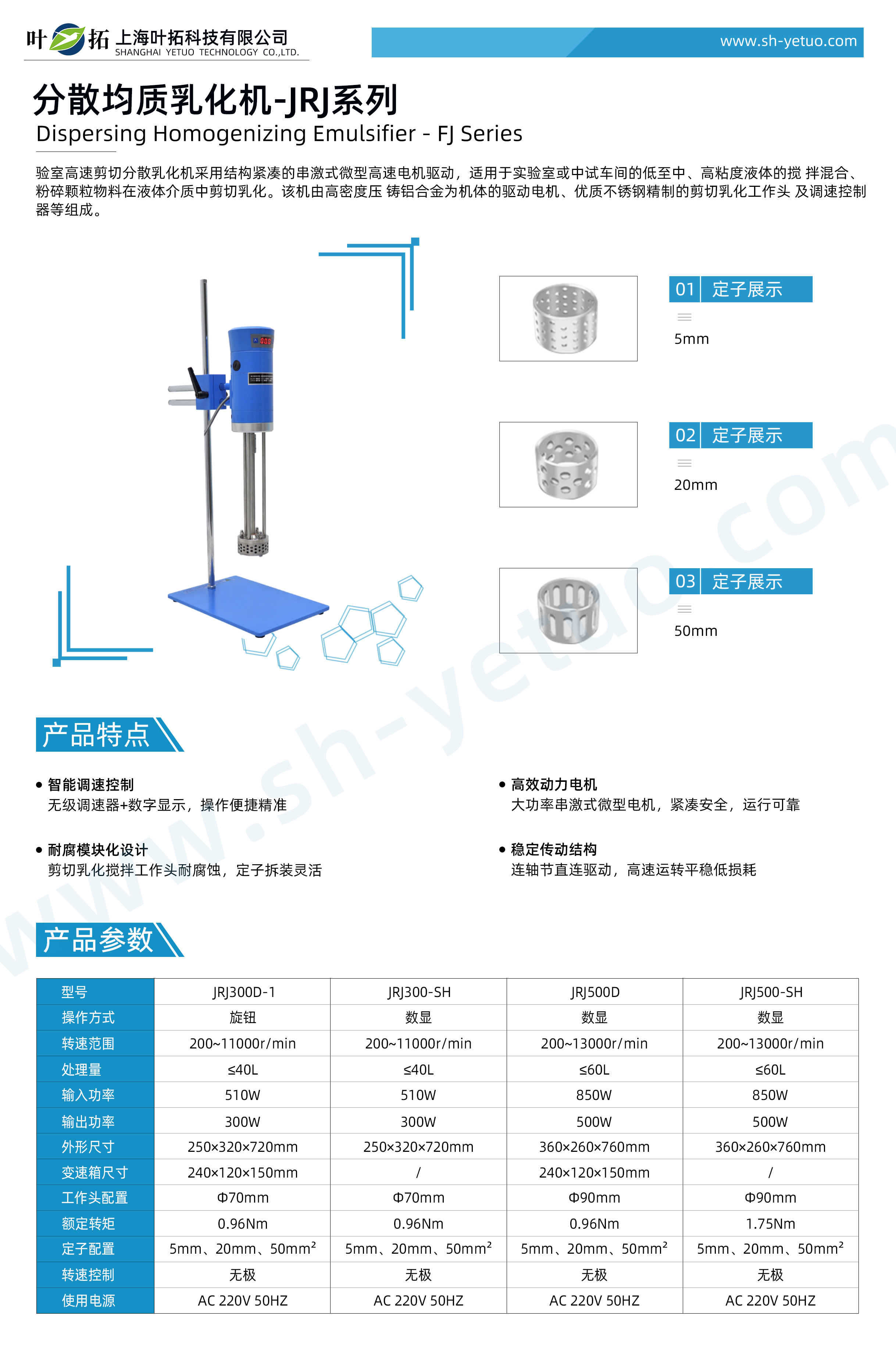

Ye Tuo JRJ300D-1 Dispersion Homogenization Emulsifier
Model: JRJ300D-1
Product Overview:
The laboratory high-speed shear dispersing emulsifier is driven by a compact series excited micro high-speed motor, suitable for stirring, mixing, and crushing low to medium to high viscosity liquids in laboratories or pilot workshops, and for shearing and emulsifying granular materials in liquid media. The machine consists of a high-density die cast aluminum alloy as the driving motor, a high-quality stainless steel refined shear emulsification working head, and a speed control controller.
Product Features of Ye Tuo JRJ300D-1 Dispersion Homogenization Emulsifier
● Intelligent speed control
Stepless speed regulator+digital display, easy and precise operation
● Efficient power motor
High power series excited micro motor, compact and safe, reliable operation
● Corrosion resistant modular design
The shear emulsification mixing head is corrosion-resistant, and the stator can be disassembled and assembled flexibly
● Stable transmission structure
Directly connected drive with coupling joint, smooth high-speed operation and low loss
